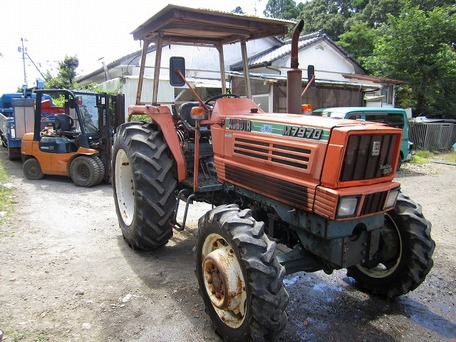

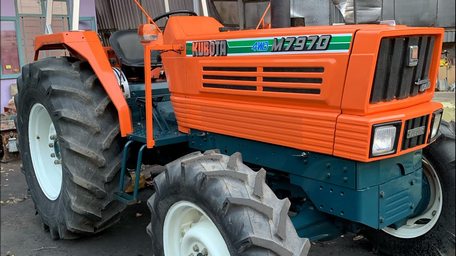

Kubota M7970

Production: 1990 - 1998

Production
Manufacturer:	Kubota
Type:	Utility tractor

Kubota M7970 Power
Engine (gross):	88 hp 65.6 kW
Engine (net):	82 hp 61.1 kW
PTO (claimed):	75.4 hp 56.2 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Differential lock:	standard
Steering:	hydrostatic power
Brakes:	wet disc
Cab:	Four-post ROPS. Cab optional.

Hydraulics
Pressure:	2630 psi 181.3 bar
Pump flow:	16.3 gpm 61.7 lpm

Tractor hitch
Rear Type:	II
Control:	position and draft control
Rear lift (at ends):	5952 lbs 2699 kg
Rear lift (at 24"/610mm):	4848 lbs 2199 kg

Power Take-off (PTO)
Rear PTO:	independent
Clutch:	hydraulic wet disc
Rear RPM:	540/1000 (1.375)

Electrical
Ground:	negative
Battery volts:	12
Battery AH:	200

Engine Detail
Kubota V4300
diesel
4-cylinder
liquid-cooled
Displacement:	261.9 ci 4.3 L
Bore/Stroke:	4.29x4.53 inches 109 x 115 mm
Power (gross):	88 hp 65.6 kW
Rated RPM:	2400
Torque:	209.8 lb-ft 284.5 Nm
Torque RPM:	1200
Starter:	electric
Starter volts:	12
Oil capacity:	13.9 qts 13.2 L
Coolant capacity:	14.4 qts 13.6 L

Transmission
Clutch:	dry disc

Dimensions
Wheelbase:	89 inches 226 cm
Length:	152.8 inches 388 cm
Width:	80.3 inches 203 cm
Height (exhaust):	104.5 inches 265 cm
Weight:	6944 lbs 3149 kg
Ground clearance:	15.2 inches 38 cm
Front tread:	60.6 to 68.5 inches 153 to 173 cm
Rear tread:	61.8 to 77.6 inches 156 to 197 cm
