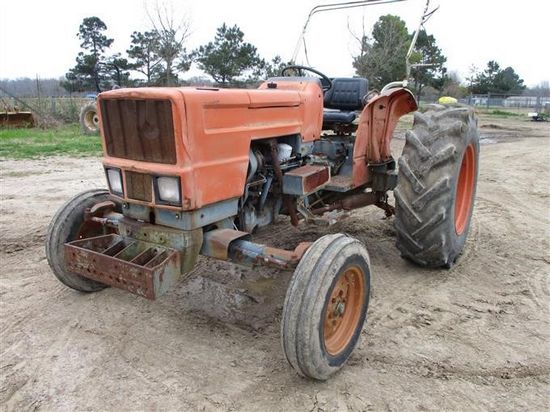

Kubota M6030
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | Kubota |
| Type: | Utility tractor |
Variants | |
| M6030DT: | 4WD |
Kubota M6030 Power | |
| Engine: | 61 hp 45.5 kW |
| Drawbar (claimed): | 48.1 hp 35.9 kW |
| PTO (claimed): | 57 hp 42.5 kW |
| Drawbar (tested): | 48.28 hp 36.0 kW |
| PTO (tested): | 57.74 hp 43.1 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Differential lock: | standard |
| Steering: | hydrostatic power |
| Brakes: | differential mechanical wet disc |
| Cab: | Two-post ROPS. |
| Transmission: | 16-speed |
Capacity | |
| Fuel: | 16.9 gal 64.0 L |
| 2WD Hydraulic system: | 12.7 gal 48.1 L |
| 4WD Hydraulic system: | 14.9 gal 56.4 L |
Hydraulics | |
| Type: | open center |
| 2WD Capacity: | 12.7 gal 48.1 L |
| 4WD Capacity: | 14.9 gal 56.4 L |
| Pressure: | 2630 psi 181.3 bar |
| Valves: | 1 |
| Total flow: | 11 gpm 41.6 lpm |
Tractor hitch | |
| Rear Type: | II/I |
| Rear lift (at ends): | 3,968 lbs 1799 kg |
| Rear lift (at 24"/610mm): | 3,307 lbs 1500 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540 |
Engine Detail | |
| Kubota D3200 | |
| diesel | |
| 3-cylinder | |
| liquid-cooled | |
| Displacement: | 196.4 ci 3.2 L |
| Bore/Stroke: | 4.29x4.53 inches 109 x 115 mm |
| Power: | 61 hp 45.5 kW |
| Air cleaner: | dual dry element |
| Compression: | 17:1 |
| Rated RPM: | 2400 |
| Starter volts: | 12 |
| 2WD Oil capacity: | 10.4 qts 9.8 L |
| 4WD Oil capacity: | 12.2 qts 11.5 L |
| Coolant capacity: | 12.3 qts 11.6 L |
Transmission | |
| Gears: | 16 forward and 4 reverse |
| 2WD Oil capacity: | 50.7 qts 48.0 L |
| 4WD Oil capacity: | 59.7 qts 56.5 L |
Dimensions | |
| Wheelbase: | 79.4 inches 201 cm |
| 2WD Length: | 135 inches 342 cm |
| 4WD Length: | 138 inches 350 cm |
| Width: | 78.8 inches 200 cm |
| 74.9 inches 190 cm (Low Profile) | |
| 2WD, 5,269 4WD} Weight: | 4,409 lbs 1999 kg |
| 2WD Ground clearance: | 19.3 inches 49 cm |
| 4WD Ground clearance: | 17.3 inches 43 cm |
| 15.9 inches 40 cm (2WD Low Profile) | |
| 14.4 inches 36 cm (4WD Low Profile) | |
| 2WD Front tread: | 55.1 to 78.7 inches 139 to 199 cm |
| 4WD Front tread: | 52.4 to 59.8 inches 133 to 151 cm |
| Rear tread: | 62.9 to 75.6 inches 159 to 192 cm |
