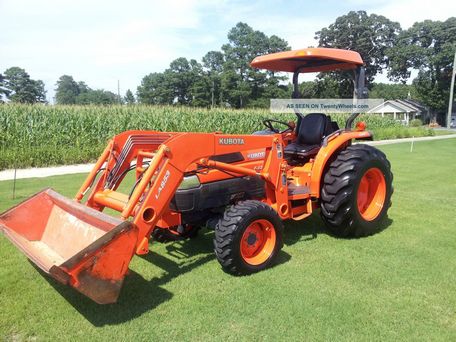

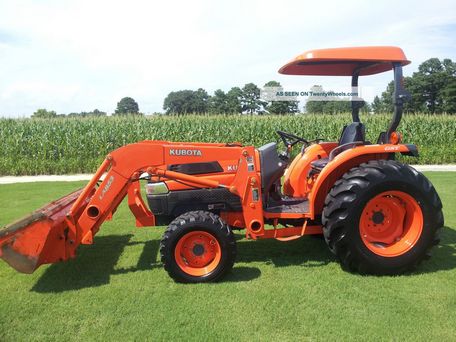

Kubota L4330

Production: 2003 - 2007

Production
Manufacturer:	Kubota
Type:	Compact Utility tractor

Variants
L4330DT:	4WD 8 speed
L4330GST:	4WD 12 speed
L4330HST:	hydro
L4330HSTC:	hydro cab

Kubota L4330 Power
Engine:	41 hp 30.6 kW
PTO (claimed):	36 hp 26.8 kW
34.5 hp 25.7 kW (hydro)

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	wet disc
Cab:	Grand Cab optional
Transmissions:	8-speed
12-speed

Hydraulics
Valves:	3 optional
Pump flow:	9.4 gpm 35.6 lpm
Total flow:	14.1 gpm 53.4 lpm
Steering flow:	4.7 gpm 17.8 lpm

Tractor hitch
Rear Type:	I
Rear lift (at 24"/610mm):	2,760 lbs 1251 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540
Mid PTO:	optional
Mid RPM:	2000

Electrical
Ground:	negative
ROPS Charging amps:	40
Cab Charging amps:	60
Battery volts:	12

Engine Detail
diesel
4-cylinder
liquid-cooled
Displacement:	134.1 ci 2.2 L
Bore/Stroke:	3.425x3.638 inches 87 x 92 mm
Power:	41 hp 30.6 kW
Rated RPM:	2600
Starter volts:	12

Dimensions
Wheelbase:	74.6 inches 189 cm
Length:	121.3 inches 308 cm
Width:	66.5 inches 168 cm
Height (ROPS):	91.1 inches 231 cm
Height (cab):	87 inches 220 cm
Weight:	3440 lbs 1560 kg (DT)
3860 lbs 1750 kg (HSTC)
Ground clearance:	14.8 inches 37 cm
