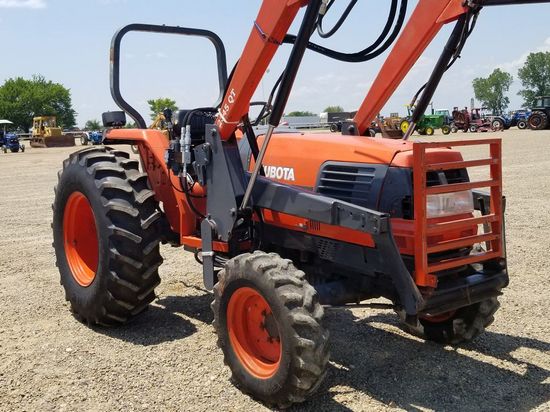

Kubota L3600

Production: 1994 - 1999

Production
Manufacturer:	Kubota
Type:	Compact Utility tractor

Kubota L3600 Power
Engine (gross):	38.5 hp 28.7 kW
Engine (net):	35.7 hp 26.6 kW
PTO (claimed):	31 hp 23.1 kW
Plows:	2 (14-inch)

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Steering:	hydrostatic power
Brakes:	wet disc
Cab:	Two-post ROPS.
Transmissions:	8-speed synchronized shuttle
8-speed power shuttle

Capacity
Fuel:	9.2 gal 34.8 L
Hydraulic system:	10.3 gal 39.0 L

Hydraulics
Type:	open center
Capacity:	10.3 gal 39.0 L
Pressure:	2490 psi 171.7 bar
Pump flow:	7.8 gpm 29.5 lpm

Tractor hitch
Rear Type:	I
Control:	position control
Rear lift (at ends):	2,870 lbs 1301 kg
Rear lift (at 24"/610mm):	2,310 lbs 1047 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540 (1.375)
Engine RPM:	540@2447
Mid PTO:	independent
Mid RPM:	2000
Engine RPM:	2000@2404

Electrical
Ground:	negative
Battery CCA:	447
Battery volts:	12

Engine Detail
Kubota V1903
diesel
4-cylinder
liquid-cooled
Displacement:	113.3 ci 1.9 L
Bore/Stroke:	3.1x3.6 inches 79 x 91 mm
Power (gross):	38.5 hp 28.7 kW
Fuel system:	indirect injection
Rated RPM:	2600
Torque:	88.7 lb-ft 120.3 Nm
Starter volts:	12
Coolant capacity:	7.9 qts 7.5 L

Dimensions
2WD Wheelbase:	71.3 inches 181 cm
4WD Wheelbase:	71.1 inches 180 cm
Length:	118.1 inches 299 cm
Width:	56.1 inches 142 cm
Height (steering wheel):	60 inches 152 cm
Height (ROPS):	83.5 inches 212 cm
Ground clearance:	13.2 inches 33 cm
Front tread:	45.1/49/53/56.9 inches 114/124/134/144 cm(2WD)
Front tread:	45.5 inches 115 cm (4WD)
Rear tread:	42.5/46.4/47.2/51.2/57.1/60.8 inches 107/117/119/130/145/154 cm
