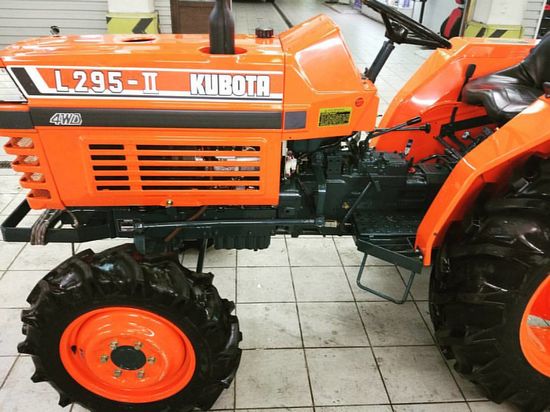

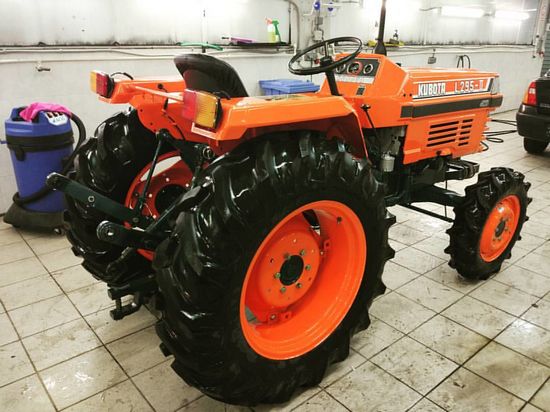

Kubota L295

Production: 1978 - 1982

Production
Manufacturer:	Kubota
Type:	Compact Utility tractor

Variants
L295F:	2WD
L295DT:	4WD

Kubota L295 Power
Engine:	30 hp 22.4 kW
PTO (claimed):	26 hp 19.4 kW
Drawbar (tested):	21.09 hp 15.7 kW
PTO (tested):	26.46 hp 19.7 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Final drives:	planetary
Steering:	manual
Brakes:	differential mechanical wet disc
Cab:	Two-post fixed ROPS.
Transmission:	8-speed gear

Hydraulics
Type:	open center
Pump flow:	5.6 gpm 21.2 lpm

Tractor hitch
Rear Type:	I

Power Take-off (PTO)
Rear PTO:	live
Rear RPM:	540/700/1000

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Kubota
diesel
3-cylinder
liquid-cooled
Displacement:	79 ci 1.3 L
Bore/Stroke:	3.23x3.23 inches 82 x 82 mm
Power:	30 hp 22.4 kW
Air cleaner:	paper element
Compression:	21:1
Rated RPM:	2800
Starter volts:	12
Oil capacity:	6.4 qts 6.1 L
Coolant capacity:	6.1 qts 5.8 L

Transmission
Type:	gear
Gears:	8 forward and 2 reverse
Clutch:	dry disc

Dimensions
2WD Wheelbase:	65 inches 165 cm
4WD Wheelbase:	65.4 inches 166 cm
Length:	112 inches 284 cm
Width:	56.25 inches 142 cm
Height:	55.5 inches 140 cm
2WD Ground clearance:	13.8 inches 35 cm
4WD Ground clearance:	12.4 inches 31 cm
2WD Front tread:	40.2 to 52.8 inches 102 to 134 cm
4WD Front tread:	43.3 inches 109 cm
Rear tread:	44.1 to 58.7 inches 112 to 149 cm
