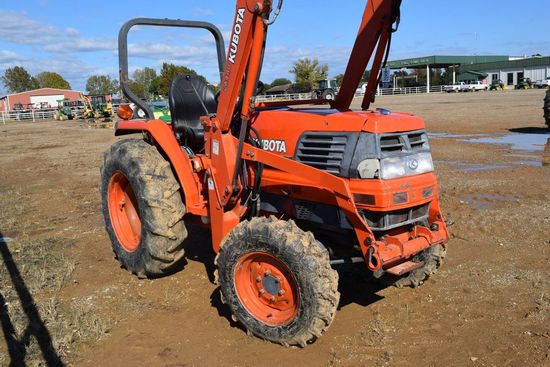

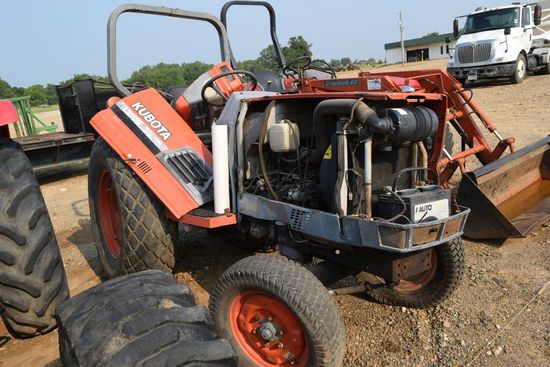

Kubota L2900

Production: 1994 - 1999

Production
Manufacturer:	Kubota
Type:	Compact Utility tractor

Kubota L2900 Power
Engine (gross):	32.1 hp 23.9 kW
Engine (net):	29.7 hp 22.1 kW
PTO (claimed):	25 hp 18.6 kW
Plows:	2*12-inch
1*16-inch

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Steering:	hydrostatic power
Brakes:	wet disc
Cab:	Two-post ROPS.
Transmissions:	8-speed synchronized shuttle
8-speed power shuttle

Capacity
Fuel:	9.2 gal 34.8 L
Hydraulic system:	10.3 gal 39.0 L

Hydraulics
Type:	open center
Capacity:	10.3 gal 39.0 L
Pressure:	2490 psi 171.7 bar
Pump flow:	7.0 gpm 26.5 lpm

Tractor hitch
Rear Type:	I
Control:	position control
Rear lift (at ends):	2,870 lbs 1301 kg
Rear lift (at 24"/610mm):	2,200 lbs 997 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540 (1.375)
Engine RPM:	540@2670
Mid PTO:	independent
Mid RPM:	2000
Engine RPM:	2000@2623

L2900 Serial Numbers
1994:	5002
1995:	54654
1996:	56282
1997:	58445

Electrical
Ground:	negative
Battery CCA:	490
Battery volts:	12

Engine Detail
Kubota D1503
diesel
3-cylinder
liquid-cooled
Displacement:	91.5 ci 1.5 L
Bore/Stroke:	3.3x3.6 inches 84 x 91 mm
Power (gross):	32.1 hp 23.9 kW
Fuel system:	indirect injection
Rated RPM:	2700
Torque:	70.9 lb-ft 96.1 Nm
Starter volts:	12
Coolant capacity:	7.4 qts 7.0 L

Dimensions
2WD Wheelbase:	65.9 inches 167 cm
4WD Wheelbase:	65.7 inches 166 cm
Length:	111 inches 281 cm
Width:	52.2 inches 132 cm
Height (steering wheel):	59.6 inches 151 cm
Height (ROPS):	82.3 inches 209 cm
Ground clearance:	12.8 inches 32 cm
Front tread:	37.8/41.7/45.7/49.6 inches 96/105/116/125 cm(2WD)
Front tread:	43.5 inches 110 cm (4WD)
Rear tread:	40.7/44.1/48/51.4/55.3 inches 103/112/121/130/140 cm
