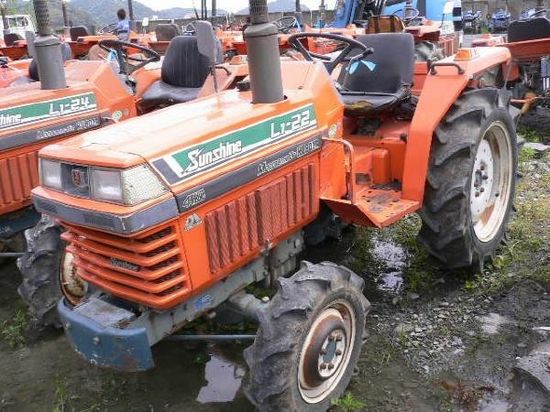

Kubota L1-22

Production: 1983 - 1985

Production
Manufacturer:	Kubota
Type:	Compact Utility tractor

Variants
L1-22DT:	4WD

Kubota L1-22 Power
Engine:	21.7 hp 16.2 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Brakes:	wet disc
Cab:	Open operator station.
Transmission:	16-speed shuttle

Tractor hitch
Rear Type:	I

Power Take-off (PTO)
Rear RPM:	540/770/940/1250 (1.375)

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Kubota D1462
diesel
3-cylinder
liquid-cooled
Displacement:	89.2 ci 1.5 L
Bore/Stroke:	3.4x3.2 inches 86 x 81 mm
Power:	21.7 hp 16.2 kW
Rated RPM:	2500
Starter:	electric
Starter volts:	12

Transmission
Type:	shuttle
Gears:	16 forward and reverse
Clutch:	dry disc
Four gears in four ranges with shuttle shift.

Dimensions
Wheelbase:	61 inches 154 cm
Length:	115.8 inches 294 cm
Width:	49.6 inches 125 cm
Height:	77.8 inches 197 cm
2WD Weight:	2105 lbs 954 kg
4WD Weight:	2227 lbs 1010 kg
2WD Ground clearance:	13.6 inches 34 cm
4WD Ground clearance:	10.8 inches 27 cm
2WD Front tread:	37.8 inches 96 cm
4WD Front tread:	37 inches 93 cm
Rear tread:	39/43.7 inches 99/110 cm
