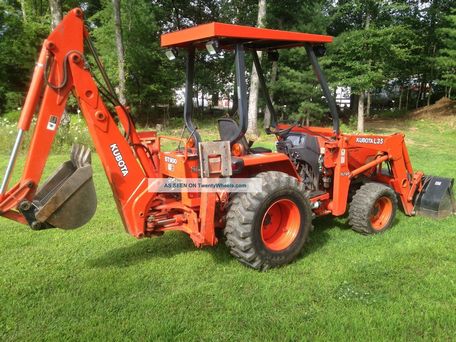

Kubota KL36

Production: 1999 - 2005

Production
Manufacturer:	Kubota
Type:	Compact Utility tractor

Kubota KL36 Power
Engine:	35.5 hp 26.5 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	mechanical wet disc
Cab:	Two-post ROPS. Cab optional.
Transmissions:	16-speed
24-speed

Tractor hitch
Rear Type:	I

Power Take-off (PTO)
Rear RPM:	540 (1.375)
Engine RPM:	533@2700 752@2700 931@2700 1241@2700 -931@2700

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Kubota D1503
diesel
3-cylinder
liquid-cooled
Displacement:	91.5 ci 1.5 L
Bore/Stroke:	3.27x3.64 inches 83 x 92 mm
Power:	35.5 hp 26.5 kW
Rated RPM:	2700
Starter:	electric
Starter volts:	12

Dimensions
Wheelbase:	75.2 inches 191 cm
Length:	136.6 inches 346 cm
Width:	57.9 inches 147 cm
Height (ROPS):	78 inches 198 cm
Height (cab):	78.5 inches 199 cm
ROPS Weight:	3318 lbs 1505 kg
Cab Weight:	3715 lbs 1685 kg
Ground clearance:	14.4 inches 36 cm
Front tread:	46.5 inches 118 cm
Rear tread:	44.9 to 56.3 inches 114 to 143 cm
