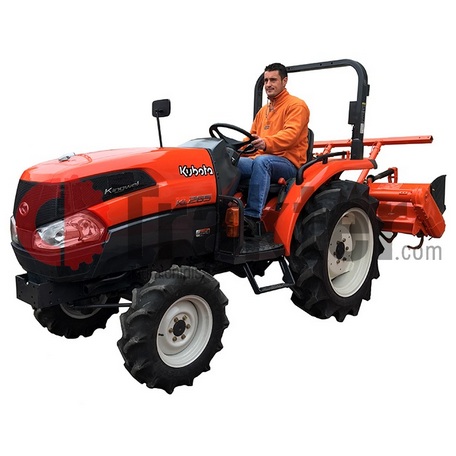

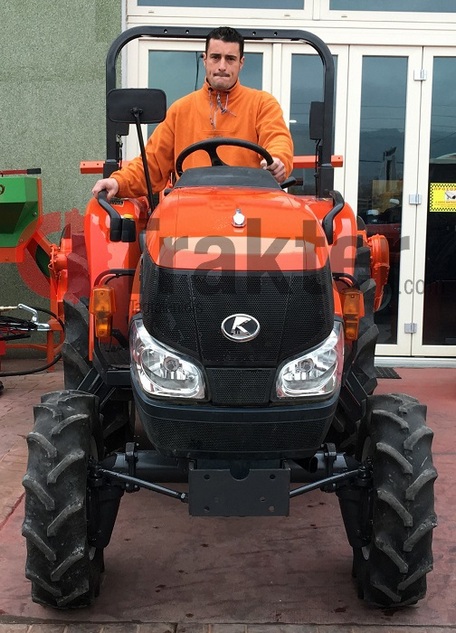

Kubota KL265

Production: 2008 - 2009

Production
Manufacturer:	Kubota
Type:	Compact Utility tractor

Variants

standard

high-speed

Kubota KL265 Power
Engine:	25.6 hp 19.1 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	mechanical wet disc
Cab:	Two-post ROPS. Cab optional.
Transmissions:	16-speed
24-speed

Tractor hitch
Rear Type:	I

Power Take-off (PTO)
Rear RPM:	540 (1.375)
Engine RPM:	540@2600 762@2600 944@2600 1258@2600 -944@2600

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Kubota D1703
diesel
3-cylinder
liquid-cooled
Displacement:	100.5 ci 1.6 L
Bore/Stroke:	3.43x3.64 inches 87 x 92 mm
Power:	25.6 hp 19.1 kW
Rated RPM:	2600
Starter:	electric
Starter volts:	12

Dimensions
ROPS Wheelbase:	62.6 inches 159 cm
Cab Wheelbase:	64.6 inches 164 cm
ROPS Length:	118.3 inches 300 cm
Cab Length:	120.5 inches 306 cm
Width:	52 inches 132 cm
Height (ROPS):	78.2 inches 198 cm
Height (cab):	80.5 inches 204 cm
ROPS Weight:	2646 lbs 1200 kg
Cab Weight:	3097 lbs 1404 kg
Ground clearance:	14.2 inches 36 cm
Front tread:	39.4 inches 100 cm
Rear tread:	41.3/45.9 inches 104/116 cm
