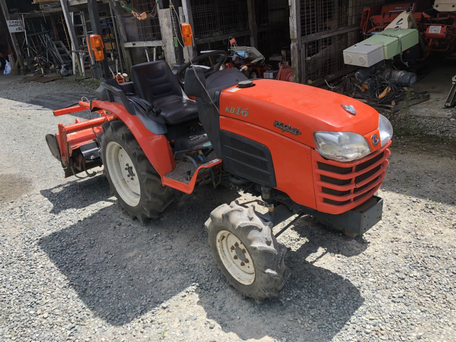

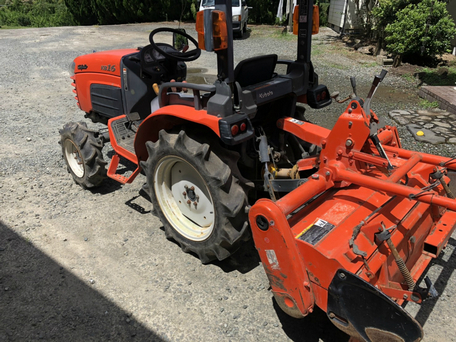

Kubota KB16

Production: 2005 - 2007
Type: Sub-compact Utility Tractors

Contents:

Production

Manufacturer:Kubota
Type:Sub-Compact Utility tractor

Kubota KB16 Power

Engine:15.8 hp 11.8 kW

Mechanical

Chassis:4x4 MFWD 4WD
Steering:power
Brakes:mechanical wet disc
Cab:Two-post ROPS.
Transmissions:9-speed
36-speed power shift

Tractor hitch

Rear Type:0

Power Take-off (PTO)

Rear RPM:540 (1.375)
Engine RPM:530@2600 799@2600 1182@2600 -662@2600

Electrical

Ground:negative
Battery volts:12

Engine Detail

Kubota D905
diesel
3-cylinder
liquid-cooled
Displacement:54.8 ci 0.9 L
Bore/Stroke:2.83x2.90 inches 72 x 74 mm
Power:15.8 hp 11.8 kW
Rated RPM:2600
Starter:electric
Starter volts:12

Dimensions

Wheelbase:53.2 inches 135 cm
Length:91.3 inches 231 cm
Width:42.3 inches 107 cm
Height (ROPS):73.6 inches 186 cm
Gear Weight:1521 lbs 689 kg
Glideshift Weight:1576 lbs 714 kg
Ground clearance:13.2 inches 33 cm
Front tread:33.1 inches 84 cm
Rear tread:31.9/35.4 inches 81/89 cm
