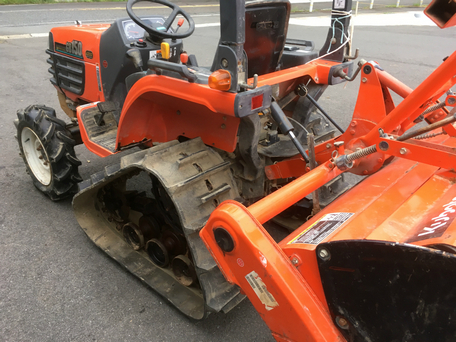

Kubota GB150
Contents:
Production | |
| Manufacturer: | Kubota |
| Type: | Sub-Compact Utility tractor |
Kubota GB150 Power | |
| Engine: | 14.8 hp 11.0 kW |
Mechanical | |
| Chassis: | 4x4 MFWD 4WD |
| Steering: | manual |
| Steering: | power*Optional |
| Brakes: | mechanical wet disc |
| Cab: | Two-post ROPS. |
| Transmission: | 6-speed gear |
Tractor hitch | |
| Rear Type: | 0 |
| Control: | position control |
Power Take-off (PTO) | |
| Rear RPM: | 540/1000 (1.375) |
Electrical | |
| Ground: | electric |
| Battery volts: | 12 |
Engine Detail | |
| Kubota D905 | |
| diesel | |
| 3-cylinder | |
| liquid-cooled | |
| Displacement: | 54.8 ci 0.9 L |
| Bore/Stroke: | 2.83x2.90 inches 72 x 74 mm |
| Power: | 14.8 hp 11.0 kW |
| Rated RPM: | 2500 |
| Starter: | negative |
| Starter volts: | 12 |
Transmission | |
| Type: | gear |
| Gears: | 6 forward and 2 reverse |
| Three gears, plus reverse, in two ranges. | |
Dimensions | |
| Wheelbase: | 50 inches 127 cm |
| Length: | 80.5 inches 204 cm |
| Width: | 41.7 inches 105 cm |
| Height (ROPS): | 72.2 inches 183 cm |
| Weight: | 1246 lbs 565 kg |
| Ground clearance: | 11.2 inches 28 cm |
| Front tread: | 29.5 inches 74 cm |
| Rear tread: | 28.4 to 34.3 inches 72 to 87 cm |
