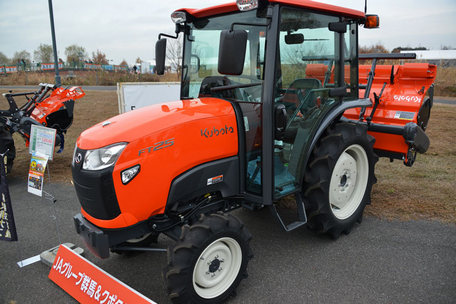

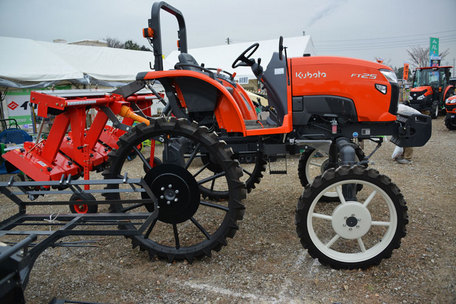

Kubota FT25

Production: 2012 - 2015

Production
Manufacturer:	Kubota
Type:	Compact Utility tractor

Variants

wheeled

half-track

Kubota FT25 Power
Engine:	24.7 hp 18.4 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	wet disc
Cab:	Two-post folding ROPS. Cab optional with air-conditioning.
Transmissions:	12-speed
48-speed power shift

Tractor hitch
Rear Type:	I

Power Take-off (PTO)
Rear RPM:	540 (1.375)
Engine RPM:	525@2600 760@2600 1182@2600 -640@2600

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Kubota D1503
diesel
3-cylinder
liquid-cooled
Displacement:	91.5 ci 1.5 L
Bore/Stroke:	3.27x3.64 inches 83 x 92 mm
Power:	24.7 hp 18.4 kW
Rated RPM:	2600
Starter:	electric
Starter volts:	12

Dimensions
Wheelbase:	59.1 inches 150 cm
Length:	114.2 inches 290 cm
ROPS Width:	46.5 inches 118 cm
Cab Width:	51.6 inches 131 cm
Height (ROPS):	76.2 inches 193 cm
Height (cab):	77.2 inches 196 cm
Ground clearance:	13 inches 33 cm
Front tread:	38.2 inches 97 cm
Rear tread:	37.4/42.1 inches 94/106 cm
