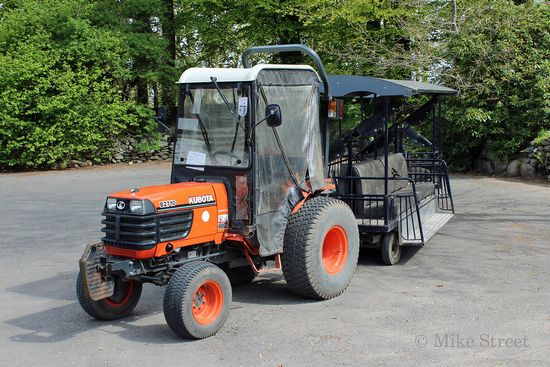

Kubota B2710

Production: 2000 - 2005

Production
Manufacturer:	Kubota
Type:	Compact Utility tractor

Kubota B2710 Power
Engine (gross):	27 hp 20.1 kW
PTO (claimed):	20 hp 14.9 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Final drives:	spur gear
Differential lock:	mechanical rear
Steering:	power
Brakes:	wet disc
Cab:	Two-post folding ROPS.
Transmission:	hydrostatic

Hydraulics
Type:	open center
Valves:	2
Pump flow:	6.4 gpm 24.2 lpm
Total flow:	9.5 gpm 36.0 lpm
Steering flow:	3.1 gpm 11.7 lpm

Tractor hitch
Rear Type:	I
Control:	position control
Rear lift (at ends):	1655 lbs 750 kg
Rear lift (at 24"/610mm):	1300 lbs 589 kg

Power Take-off (PTO)
Rear PTO:	live
Rear RPM:	540 (1.375)
Engine RPM:	540@2600
Mid PTO:	live
Mid RPM:	2500 (Kubota 10-spline)
Engine RPM:	2500@2578

Electrical
Ground:	negative
Battery CCA:	443
Battery volts:	12

Engine Detail
Kubota V1305-E-D12
diesel
4-cylinder
liquid-cooled
Displacement:	81.5 ci 1.3 L
Bore/Stroke:	2.99x2.90 inches 76 x 74 mm
Power (gross):	27 hp 20.1 kW
Air cleaner:	dry
Rated RPM:	2600
Starter volts:	12
Oil capacity:	4.3 qts 4.1 L
Coolant capacity:	4.7 qts 4.4 L

Transmission
Type:	hydrostatic
Gears:	infinite (3-range) forward and reverse
Oil capacity:	3.8 qts 3.6 L

Dimensions
Wheelbase:	65.6 inches 166 cm
Length:	99.2 inches 251 cm
Width:	53.8 inches 136 cm
Height (ROPS):	78.5 inches 199 cm
Weight:	1741 lbs 789 kg
Ground clearance:	14.6 inches 37 cm
