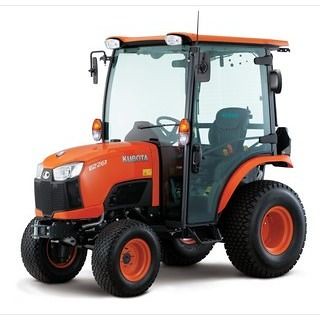

Kubota B2261

Production: 2018

Production
Manufacturer:	Kubota
Type:	Compact Utility tractor

Kubota B2261 Power
Engine (gross):	25.6 hp 19.1 kW
Engine (net):	23.6 hp 17.6 kW
Gear PTO (claimed):	20.3 hp 15.1 kW
Hydro PTO (claimed):	19.6 hp 14.6 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Differential lock:	mechanical rear
Steering:	power
Brakes:	wet disc
Cab:	Two-post folding ROPS. Cab optional with air-conditioning.
Transmissions:	9-speed mechanical shuttle
hydrostatic

Hydraulics
Pressure:	2347 psi 161.8 bar
Total flow:	8.7 gpm 32.9 lpm

Tractor hitch
Rear Type:	I
Control:	position control
Rear lift (at ends):	2138 lbs 969 kg

Power Take-off (PTO)
Gear Rear PTO:	transmission
Hydro Rear PTO:	independent
Rear RPM:	540 (1.375)
Mid PTO:	optional
Mid RPM:	2500 (Kubota 10-tooth #5)

Electrical
Ground:	negative
Charging system:	alternator
Battery volts:	12

Engine Detail
Kubota
diesel
3-cylinder
liquid-cooled
Displacement:	77 ci 1.3 L
Bore/Stroke:	3.07x3.46 inches 78 x 88 mm
Power (gross):	25.6 hp 19.1 kW
Rated Power (ECE R24):	23.6 hp 17.6 kW
Air cleaner:	dry element
Rated RPM:	2500
Starter:	electric
Starter volts:	12

Dimensions
ROPS Wheelbase:	59.1 inches 150 cm
Cab Wheelbase:	61.4 inches 155 cm
ROPS Length:	107.5 inches 273 cm
Cab Length:	113.7 inches 288 cm
Width:	49.2 inches 124 cm
Height (ROPS):	92.6 inches 235 cm
Height (cab):	83.2 inches 211 cm
Ground clearance:	11.4 inches 28 cm
Front tread:	32.8 to 37.8 inches 83 to 96 cm
Rear tread:	39.6 to 43.5 inches 100 to 110 cm
