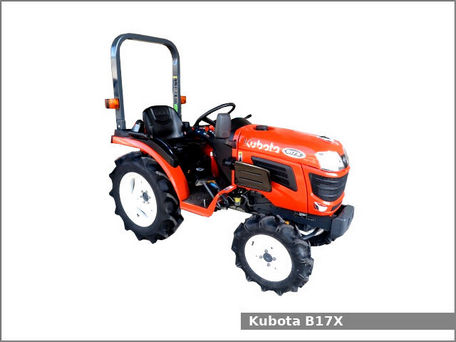

Kubota B17X

Production: 2015
Type: Sub-compact Utility Tractors

Contents:

Production

Manufacturer:Kubota
Type:Sub-Compact Utility tractor

Kubota B17X Power

Engine:16.8 hp 12.5 kW

Mechanical

Chassis:4x4 MFWD 4WD
Steering:power
Brakes:wet disc
Cab:Two-post ROPS.
Transmission:6-speed

Power Take-off (PTO)

Rear RPM:540 (1.375)
Engine RPM:551@2600 967@2600 -540@2600

Electrical

Ground:negative
Battery volts:12

Engine Detail

Kubota
diesel
3-cylinder
liquid-cooled
Displacement:61.1 ci 1.0 L
Bore/Stroke:2.99x2.90 inches 76 x 74 mm
Power:16.8 hp 12.5 kW
Rated RPM:2600
Starter:electtric
Starter volts:12

Transmission

Gears:6 forward and 2 reverse
Clutch:dry disc

Dimensions

Wheelbase:50 inches 127 cm
Length:80.5 inches 204 cm
Width:35.8 inches 90 cm
Height (ROPS):72.4 inches 183 cm
Weight:1268 lbs 575 kg
Ground clearance:11.2 inches 28 cm
Front tread:29.5 inches 74 cm
Rear tread:28.4/30.3 inches 72/76 cm
