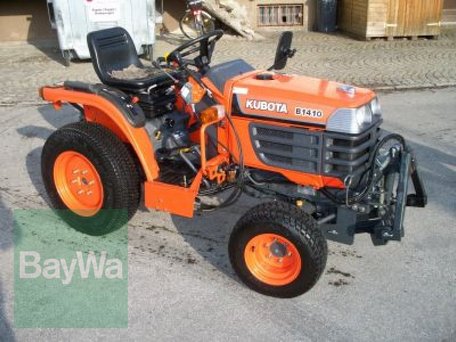

Kubota B1410

Type: Sub-compact Utility Tractors

Contents:

Production

Manufacturer:Kubota
Type:Sub-Compact Utility tractor

Kubota B1410 Power

Engine (gross):13.8 hp 10.3 kW
Engine (net):12.9 hp 9.6 kW
PTO (claimed):10.8 hp 8.1 kW

Mechanical

Chassis:4x4 MFWD 4WD
Differential lock:mechanical
Brakes:wet disc
Cab:Open operator station.
Transmission:6-speed

Tractor hitch

Rear Type:I
Rear lift (at ends):1190 lbs 539 kg

Power Take-off (PTO)

Rear RPM:540/1000 (1.375)
Mid RPM:2545

Engine Detail

Kubota D662
diesel
3-cylinder
liquid-cooled
Displacement:40.03 ci 0.7 L
Bore/Stroke:2.52x2.68 inches 64 x 68 mm
Power (gross):13.8 hp 10.3 kW

Transmission

Gears:6 forward and 2 reverse

Dimensions

Wheelbase:50 inches 127 cm
Length:80.1 inches 203 cm
Width:36.7 inches 93 cm *Minimum width.
Height:48.6 inches 123 cm
Weight:1124 lbs 509 kg
Ground clearance:9.8 inches 24 cm
Front tread:30.6 inches 77 cm
Rear tread:28 to 40.6 inches 71 to 103 cm
