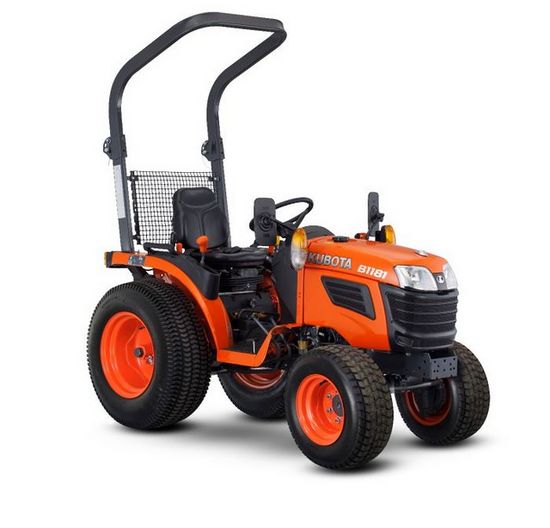

Kubota B1181

Production: 2018

Production
Manufacturer:	Kubota
Type:	Sub-Compact Utility tractor

Kubota B1181 Power
Engine (net):	17.4 hp 13.0 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Differential lock:	mechanical rear
Steering:	power
Brakes:	wet disc
Cab:	Two-post folding ROPS.
Transmission:	6-speed gear

Hydraulics
Pump flow:	3.8 gpm 14.4 lpm

Tractor hitch
Rear Type:	I
Rear lift (at ends):	1191 lbs 540 kg

Power Take-off (PTO)
Rear RPM:	540/1000 (1.375)
Mid PTO:	optional
Mid RPM:	2500 (Kubota 10-tooth #5)

Electrical
Ground:	negative
Charging system:	alternator
Battery volts:	12

Engine Detail
Kubota D782
diesel
3-cylinder
liquid-cooled
Displacement:	47.5 ci 0.8 L
Bore/Stroke:	2.64x2.90 inches 67 x 74 mm
Rated Power (ECE R24):	17.4 hp 13.0 kW
Air cleaner:	dry element
Rated RPM:	3000
Starter:	electric
Starter volts:	12

Transmission
Type:	gear
Gears:	6 forward and 2 reverse

Dimensions
Wheelbase:	50 inches 127 cm
Length:	92.9 inches 235 cm
Width:	36.9 inches 93 cm
Height (ROPS):	87.3 inches 221 cm
Weight:	1411 lbs 640 kg
Ground clearance:	9.5 inches 24 cm
Front tread:	30.2 to 34.1 inches 76 to 86 cm
Rear tread:	29.9 to 39.6 inches 75 to 100 cm
