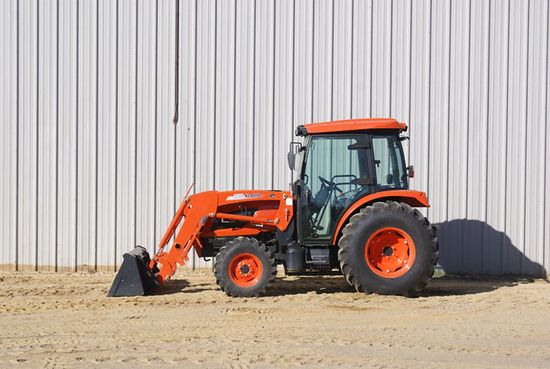

Kioti NX5510

Production: 2014

Production
Manufacturer:	Kioti (a part of Daedong)
Type:	Compact Utility tractor

Kioti NX5510 Power
Engine (gross):	55 hp 41.0 kW
Gear PTO (claimed):	46 hp 34.3 kW
Hydro PTO (claimed):	43.1 hp 32.1 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Differential lock:	rear standard
Steering:	hydrostatic power
Brakes:	wet discs
Cab:	Two-post foldable ROPS. Cab optional with air-conditioning.
Transmissions:	24-speed synchro shuttle
hydrostatic

Hydraulics
Type:	open center gear pump
Valves:	0 to 2
Gear Pump flow:	16.5 gpm 62.5 lpm
Hydro Pump flow:	17.9 gpm 67.8 lpm

Tractor hitch
Rear Type:	II/I
Control:	position and draft control
Rear lift (at 24"/610mm):	3177 lbs 1441 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540 (1.375)
Mid PTO:	optional
Mid RPM:	2000

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Daedong 3F183T
turbocharged diesel
3-cylinder 6-valve
liquid-cooled inline
Displacement:	111.4 ci 1.8 L
Bore/Stroke:	3.425x4.031 inches 87 x 102 mm
Emissions:	Tier IV
Power (gross):	55 hp 41.0 kW
Fuel system:	common rail direct injection
Rated RPM:	2600
Starter:	electric
Starter volts:	12

Dimensions
Wheelbase:	75.6 inches 192 cm
Length:	139.6 inches 354 cm
Width:	65.7 inches 166 cm (min)
Height (ROPS):	103.1 inches 261 cm
Height (cab):	94.1 inches 239 cm
Ground clearance:	15.7 inches 39 cm
Front tread:	53.3 inches 135 cm
Rear tread:	52.5 inches 133 cm
