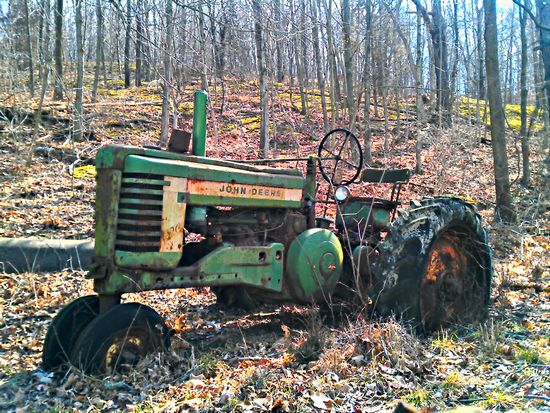

John Deere 820
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | John Deere |
| Type: | Utility tractor |
| Factory: | Mannheim, Baden-Württemberg, Germany |
| Original price: | $4,000 |
John Deere 820 Power | |
| Engine: | 32 hp 23.9 kW |
| PTO (claimed): | 31 hp 23.1 kW |
| Plows: | 2-bottom integral |
Mechanical | |
| Chassis: | 4x2 2WD |
| Differential lock: | mechanical rear |
| Cab: | Open operator station. Two-post ROPS optional. |
| Transmissions: | 7-speed sliding gear |
| 8-speed collar shift | |
Capacity | |
| Fuel: | 16.5 gal 62.5 L |
| Hydraulic system: | 10 gal 37.9 L |
Hydraulics | |
| Type: | open center |
| Capacity: | 10 gal 37.9 L |
Tractor hitch | |
| Rear Type: | I |
Power Take-off (PTO) | |
| Rear PTO: | live*Two-stage clutch |
| Rear RPM: | 540 |
820 Serial Numbers | |
| Location: | Serial number plate is on the front-right on main the frame of the 820, above the front axle. |
| 1968: | 10000 |
| 1969: | 23100 |
| 1970: | 36000 |
| 1971: | 54000 |
| 1972: | 71850 |
| 1973: | 90200 |
Electrical | |
| Ground: | negative |
| Batteries: | 2 |
| Battery volts: | 12 |
| Battery AH: | 55 |
Engine Detail | |
| John Deere | |
| diesel | |
| 3-cylinder | |
| liquid-cooled | |
| Displacement: | 151.9 ci 2.5 L |
| Bore/Stroke: | 3.858x4.33 inches 98 x 110 mm |
| Power: | 32 hp 23.9 kW |
| Air cleaner: | oil bath |
| Compression: | 16.7:1 |
| Rated RPM: | 2100 |
| Firing order: | 1-2-3 |
| Starter volts: | 12 |
| Oil capacity: | 6.5 qts 6.2 L |
Dimensions | |
| Wheelbase: | 74.4 inches 188 cm |
| Length: | 135 inches 342 cm |
| Width: | 59.06 inches 150 cm (min) |
| 81.1 inches 205 cm (max) | |
| Height: | 78.74 inches 199 cm |
| Weight: | 4000 lbs 1814 kg |
