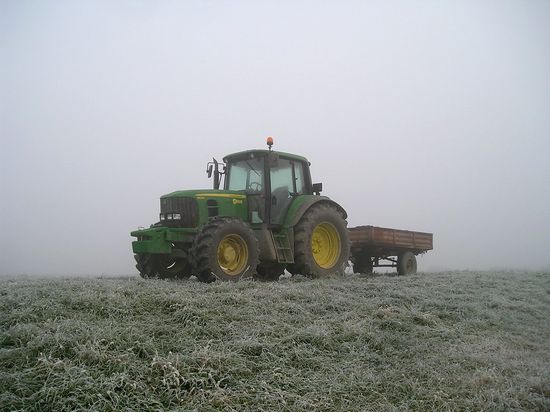

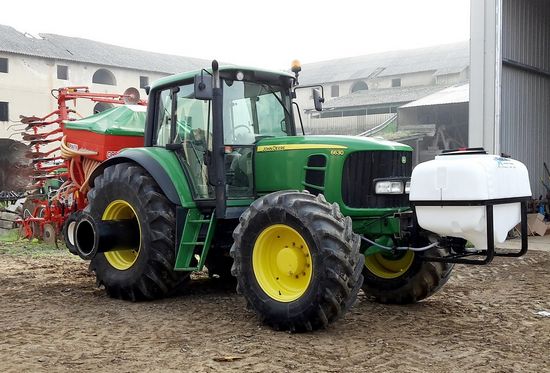

John Deere 6630
Contents:
Production | |
| Manufacturer: | John Deere |
John Deere 6630 Power | |
| Engine (gross): | 130 hp 96.9 kW |
| Engine (net): | 126 hp 94.0 kW |
| Engine (max): | 137 hp 102.2 kW |
| PTO (claimed): | 113 hp 84.3 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD (optional) | |
| Differential lock: | rear electro-hydraulic wet disc |
| Brakes: | hydraulic wet disc |
| Cab: | Two-post foldable Roll-Guard ROPS. Cab with air-conditioning optional. |
| Transmissions: | 12-speed synchronized |
| 16-speed power shuttle | |
| 16-speed partial power shift | |
| 24-speed partial power shift | |
Capacity | |
| Fuel: | 54.7 gal 207.0 L |
| Optional Fuel: | 66 gal 249.8 L |
| Hydraulic system: | 13.2 gal 50.0 L |
Hydraulics | |
| Type: | constant flow load sensing |
| Capacity: | 13.2 gal 50.0 L |
| Pressure: | 2,901 psi 200.0 bar |
| Pump flow: | 21.4 gpm 81.0 lpm |
Tractor hitch | |
| Rear Type: | II |
| II/IIIN (optional) | |
| Control: | load and depth control with electronic lower-link sensing |
| Rear lift: | 11,470 lbs 5202 kg |
| 14,880 lbs 6749 kg (optional) | |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Clutch: | electro-hydraulic wet disc |
| Rear RPM: | 540/540E/1000 |
| Engine RPM: | 540@2143 540E@1684 1000@2208 |
| Front RPM: | 1000 |
| Engine RPM: | 1000@2185 |
6630 Serial Numbers | |
| Location: | Front-right side of main tractor frame, above front axle. |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 90 |
| Optional Charging amps: | 154 |
| Battery volts: | 12 |
Engine Detail | |
| John Deere 6068HL280 | |
| turbocharged diesel | |
| 6-cylinder 12-valve | |
| liquid-cooled | |
| Displacement: | 413.7 ci 6.8 L |
| Bore/Stroke: | 4.19x5.00 inches 106 x 127 mm |
| Emissions: | Tier III |
| Rated Power (ECE R24): | 126 hp 94.0 kW |
| Rated Power (EC 97/98): | 130 hp 96.9 kW |
| Maximum Power (ECE R24): | 132 hp 98.4 kW |
| Maximum Power (EC 97/68): | 137 hp 102.2 kW |
| Fuel system: | high-pressure common rail injection |
| Cooling system: | viscous fan |
| Air cleaner: | dry element |
| Rated RPM: | 2300 |
| Idle RPM: | 850-2460 |
| Operating RPM: | 1600-2300 |
| Torque: | 389 lb-ft 527.5 Nm |
| Torque RPM: | 1600 |
| Firing order: | 1-5-3-6-2-4 |
| Starter volts: | 12 |
| Starter power: | 4 hp 3.0 kW |
| Oil capacity: | 20.6 qts 19.5 L |
| Oil change: | 500 h |
| Coolant capacity: | 29.6 qts 28.0 L |
| Coolant change: | 3000 h |
| Intake valve clearance: | 0.014 inches 0.356 mm |
| Exhaust valve clearance: | 0.018 inches 0.457 mm |
Dimensions | |
| Wheelbase: | 104.3 inches 264 cm |
| Length: | 186.1 inches 472 cm |
| Width: | 91.2 inches 231 cm |
| Height: | 111.5 inches 283 cm |
| Front tread: | 58.5 to 80.4 inches 148 to 204 cm (2WD) |
| Front tread: | 63.9 to 83.3 inches 162 to 211 cm (4WD) |
| Rear tread: | 63.9 to 79.6 inches 162 to 202 cm |
