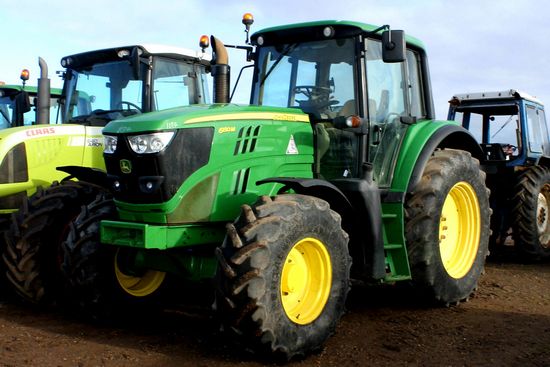

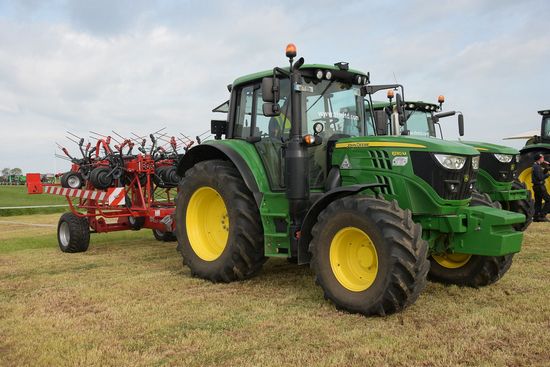

John Deere 6130M
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | John Deere |
| Type: | Utility tractor |
| Factory: | Mannheim, Baden-Württemberg, Germany |
John Deere 6130M Power | |
| Engine (gross): | 130 hp 96.9 kW |
| Engine (max): | 137 hp 102.2 kW |
| PTO (claimed): | 102 hp 76.1 kW |
| Drawbar (tested): | 101.1 hp 75.4 kW |
| PTO (tested): | 113.0 hp 84.3 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Final drives: | inboard planetary |
| Differential lock: | electro-hydraulic front and rear |
| Steering: | power |
| Brakes: | hydraulic wet disc |
| Cab: | Cab standard with air-conditoning. Two-post folding ROPS available. |
| Transmissions: | 12-speed |
| 16-speed four-speed power shift | |
| 24-speed four-speed power shift | |
Hydraulics | |
| Type: | open center |
| closed-center pressure-and-flow compensated load sensing*Optional | |
| Pressure: | 2900 psi 200.0 bar |
| Rear valves: | 3*Optional |
| Mid valves: | 3*Optional |
| Pump flow: | 21.1 gpm 79.9 lpm |
| 30 gpm 113.6 lpm *Pressure-flow compensated option. | |
| SCV flow: | 21.1 gpm 79.9 lpm |
Tractor hitch | |
| Rear Type: | IIIN/II |
| Control: | electronic lower-link draft sensing |
| Rear lift: | 6474 lbs 2936 kg |
| 8456 lbs 3835 kg *Optional | |
| Drawbar: | Cat. 2 |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Clutch: | electro-hydraulic |
| Rear RPM: | 540/1000 (1.375) |
| 540 | |
| Engine RPM: | 540@1932 1000@1932 |
6130M Serial Numbers | |
| Location: | Serial number plate on the right side of the tractor frame, above and to the rear of the front axle. |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 120 |
| 200*Optional with cab. | |
| Charging volts: | 14 |
| Battery volts: | 12 |
Engine Detail | |
| John Deere PowerTech PSS | |
| turbocharged aftercooled diesel | |
| 4-cylinder 16-valve | |
| liquid-cooled inline | |
| Displacement: | 276 ci 4.5 L |
| Bore/Stroke: | 4.15x5.00 inches 105 x 127 mm |
| Emissions: | Tier IV |
| Emission control: | cooled exhaust-gas recirculation, diesel particulate filter, and selective catalytic reduction |
| Rated Power (EC 97/98): | 130 hp 96.9 kW |
| Maximum Power (EC 97/68): | 137 hp 102.2 kW |
| Rated RPM: | 2100 |
| Starter: | electric |
| Starter volts: | 12 |
| Starter power: | 4 hp 3.0 kW |
| Coolant capacity: | 23.25 qts 22.0 L |
Dimensions | |
| Wheelbase: | 101.6 inches 258 cm |
| Length: | 176.6 inches 448 cm |
| Width: | 100.4 inches 255 cm |
| Height (ROPS): | 113.1 inches 287 cm |
| Height (cab): | 113.3 inches 287 cm |
| Clearance (front axle): | 23.9 inches 60 cm |
| Rear axle: | Flange |
| Rear axle: | Rack-and-pinion: 3.1 by 100.6 inches 78 by 2555 mm |
| 2WD Front tread: | 60.4 to 80.4 inches 153 to 204 cm |
