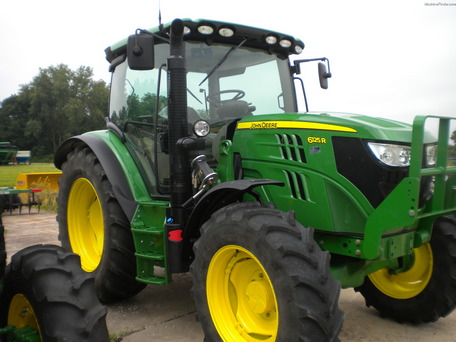

John Deere 6125R
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | John Deere |
| Type: | Utility tractor |
| Factory: | Mannheim, Baden-Württemberg, Germany |
John Deere 6125R Power | |
| Engine (gross): | 125 hp 93.2 kW |
| Engine (max): | 138 hp 102.9 kW |
Mechanical | |
| Chassis: | 4x4 MFWD 4WD |
| Differential lock: | Electro-hydraulic rear with wet disc clutch. Self-locking front. |
| Steering: | hydrostatic power |
| Trailer brakes: | hydraulic or pneumatic optional |
| Cab: | ComfortView cab standard with air-conditioning. Optional hydraulic cab suspension (HCS Plus). AutoTrac ready. ISOBUS implement connections. |
| Transmissions: | 24-speed partial power shift |
| infinitely variable transmission | |
Hydraulics | |
| Type: | pressure flow compensated (PFC) |
| Rear valves: | 4 |
| Front valves: | 2 (optional) |
| Pump flow: | 21.1 gpm 79.9 lpm |
| 32.1 gpm 121.5 lpm (optional) | |
Tractor hitch | |
| Rear Type: | 3N |
| Control: | load and depth control with electronic lower link sensing |
| Rear lift (at ends): | 9,592 lbs 4350 kg |
| Rear lift (at 24"/610mm): | 8,489 lbs 3850 kg |
| Front Hitch: | 3N |
| Front lift (at ends): | 7,277 lbs 3300 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Clutch: | electro-hydraulic wet disc |
| Rear RPM: | 540/540E/1000 |
| Engine RPM: | 540@1950 540E@1721 1000@1950 |
| Front PTO: | independent |
| Front RPM: | 1000 |
| Engine RPM: | 1000@1995 |
Electrical | |
| Ground: | negative |
| Battery volts: | 12 |
Engine Detail | |
| John Deere | |
| turbocharged intercooled diesel | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement: | 276 ci 4.5 L |
| Bore/Stroke: | 4.15x5.00 inches 105 x 127 mm |
| Emissions: | Stage IIIb |
| Emission control: | exhaust gas recirculation (EGR) |
| Rated Power (EC 97/98): | 125 hp 93.2 kW |
| Maximum Power (EC 97/68): | 138 hp 102.9 kW |
| Rated RPM: | 2100 |
| Torque: | 431.5 lb-ft 585.1 Nm |
| Torque RPM: | 1600 |
| Starter: | electric |
| Starter volts: | 12 |
| Coolant capacity: | 23.3 qts 22.1 L |
Dimensions | |
| Wheelbase: | 101.6 inches 258 cm |
| Length: | 178.7 inches 453 cm |
| Width: | 100.4 inches 255 cm |
| Height: | 110.2 inches 279 cm |
| Shiping weight: | 12,061 lbs 5470 kg |
| Max weight: | 20,948 lbs 9502 kg |
| Ground clearance: | 19.7 inches 50 cm |
| Front axle: | Triple Link Suspension |
| Rear axle: | Flange |
