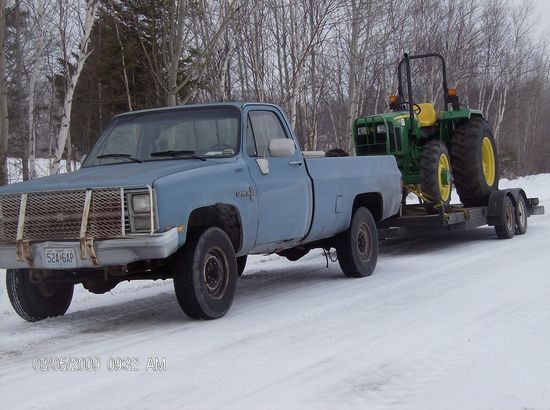

John Deere 5403
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | John Deere |
| Type: | Utility tractor |
| Factory: | Pune, Maharashtra, India |
John Deere 5403 Power | |
| Engine: | 74 hp 55.2 kW |
| PTO (claimed): | 64 hp 47.7 kW |
| PTO (tested): | 66.27 hp 49.4 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Steering: | power |
| Brakes: | differential wet disc |
| Cab: | Two-post ROPS. |
| Transmissions: | 9-speed |
| 9-speed partially synchronized | |
Capacity | |
| Fuel: | 19 gal 71.9 L |
| Hydraulic system: | 10 gal 37.9 L |
| Front axle: | 5.3 qts 5.0 L |
| Front hubs: | 0.85 qts 0.8 L (each) |
Hydraulics | |
| Type: | open center |
| Capacity: | 10 gal 37.9 L |
| Pressure: | 2800 psi 193.1 bar |
| Valves: | 1 or 2 |
| Pump flow: | 9.5 gpm 36.0 lpm |
| Total flow: | 16.3 gpm 61.7 lpm |
| Steering flow: | 6.8 gpm 25.7 lpm |
Tractor hitch | |
| Rear Type: | I/II |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540 |
| Engine RPM: | 540@2400 |
5403 Serial Numbers | |
| Location: | On the tractor frame, front-left, above the front axle. |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 40 |
| Battery CCA: | 623 |
| Battery volts: | 12 |
Engine Detail | |
| John Deere | |
| turbocharged diesel | |
| 3-cylinder | |
| liquid-cooled | |
| Displacement: | 179 ci 2.9 L |
| Bore/Stroke: | 4.19x4.33 inches 106 x 110 mm |
| Power: | 74 hp 55.2 kW |
| Air cleaner: | paper and felt |
| Compression: | 17.8:1 |
| Rated RPM: | 2400 |
| Firing order: | 1-2-3 |
| Starter volts: | 12 |
| Coolant capacity: | 10 qts 9.5 L |
| Coolant change: | 2000 h |
| Intake valve clearance: | 0.014 inches 0.356 mm |
| Exhaust valve clearance: | 0.018 inches 0.457 mm |
Dimensions | |
| Wheelbase: | 80.7 inches 204 cm |
| 2WD Clearance (front axle): | 18 inches 45 cm |
| Front tread: | 56.9 to 81.9 inches 144 to 208 cm |
| Rear tread: | 55.8 to 71.7 inches 141 to 182 cm |
