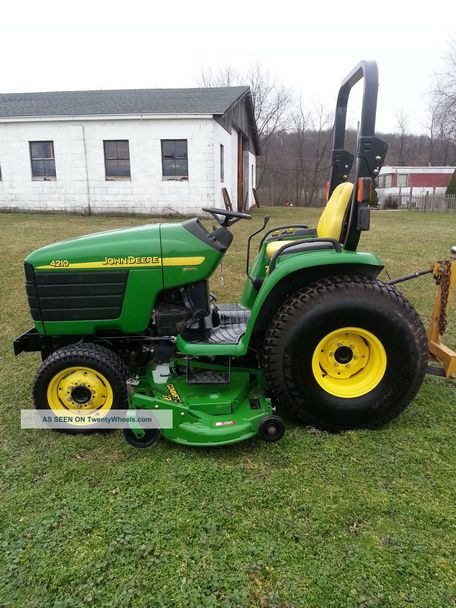

John Deere 4210

Production: 2002 - 2004

Production
Manufacturer:	John Deere
Type:	Compact Utility tractor
Factory:	Augusta, Georgia, USA

John Deere 4210 Power
Engine (gross):	27 hp 20.1 kW
PTO (claimed):	23.5 hp 17.5 kW (gear)
22 hp 16.4 kW (hydro)

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Differential lock:	mechanical
Steering:	power
Brakes:	wet disc
Cab:	Two-post ROPS. Foldable ROPS optional.
Transmissions:	9-speed partially synchronized
hydrostatic

Capacity
Fuel:	10 gal 37.9 L
Hydraulic system:	6.3 gal 23.8 L (gear)
6.8 gal 25.7 L (hydro)
Front axle:	4.7 qts 4.4 L

Hydraulics
Type:	open center
Capacity:	6.3 gal 23.8 L (gear)
6.8 gal 25.7 L (hydro)
Pressure:	2125 psi 146.5 bar
Valves:	5
Pump flow:	7.0 gpm 26.5 lpm
Total flow:	12.3 gpm 46.6 lpm
Steering flow:	5.3 gpm 20.1 lpm

Tractor hitch
Rear Type:	I
Rear lift (at 24"/610mm):	1,700 lbs 771 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540
Mid PTO:	optional
Mid RPM:	2100

4210 Serial Numbers
Location:	On right side of tractor frame above the front axle.
2002:	120001
2003:	220001
2004:	320001

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	40
55 (optional)
Battery CCA:	500
Battery volts:	12

Engine Detail
Yanmar 3TNE82A
diesel
3-cylinder
liquid-cooled
Displacement:	81.2 ci 1.3 L
Bore/Stroke:	3.23x3.31 inches 82 x 84 mm
Power (gross):	27 hp 20.1 kW
Air cleaner:	dry
Compression:	18.5:1
Rated RPM:	2600
Idle RPM:	1000-2810
Starter volts:	12
Starter power:	1.6 hp 1.2 kW
Oil capacity:	4.0 qts 3.8 L
Coolant capacity:	5.6 qts 5.3 L

Dimensions
Wheelbase:	65 inches 165 cm
Length:	117 inches 297 cm
Width:	53 inches 134 cm
Clearance (rear axle):	30.1 inches 76 cm
