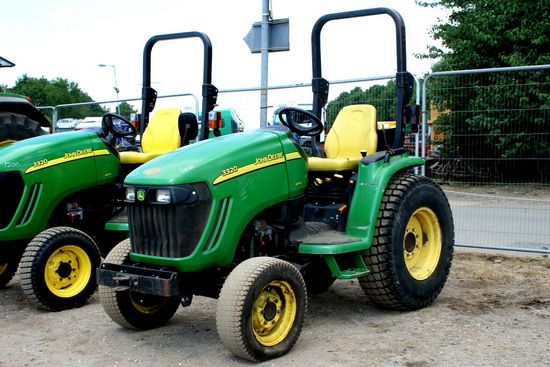

John Deere 3320

Production: 2005 - 2013

Production
Manufacturer:	John Deere
Type:	Compact Utility tractor
Factory:	Augusta, Georgia, USA

John Deere 3320 Power
Engine:	32.5 hp 24.2 kW
PTO (claimed):	25 hp 18.6 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	wet disc
Cab:	Two-post foldable ROPS. Cab optional.
Transmissions:	12-speed partially synchronized with power shuttle
hydrostatic

Capacity
ROPS Fuel:	13.5 gal 51.1 L
Cab Fuel:	11.8 gal 44.7 L
Hydraulic system:	6.8 gal 25.7 L
6.3 gal 23.8 L (with gear transmission)

Hydraulics
Type:	open center
Capacity:	6.8 gal 25.7 L
6.3 gal 23.8 L (with gear transmission)
Valves:	5
Pump flow:	8.6 gpm 32.6 lpm
Total flow:	13.9 gpm 52.6 lpm

Tractor hitch
Rear Type:	I
Rear lift (at ends):	2,530 lbs 1147 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540
Mid PTO:	optional
Mid RPM:	2100

3320 Serial Numbers
2005:	100001 (hydro)
2006:	230001 (hydro)
2007:	330001 (hydro)
2008:	420001 (hydro)
2009:	500001 (hydro)
2010:	600001 (hydro)
2011:	710001 (hydro)
2012:	810001 (hydro)
2013:	910001 (hydro)
2005:	100001 (gear)
2006:	240001 (gear)
2007:	340001 (gear)
2008:	427001 (gear)
2009:	504001 (gear)
2010:	604001 (gear)
2011:	710001 (gear)
2012:	810001 (gear)
2013:	910001 (gear)

Electrical
Ground:	negative
ROPS Charging amps:	40
Cab Charging amps:	75
Battery CCA:	500
Battery volts:	12

Engine Detail
Yanmar 3TNV88
diesel
3-cylinder
liquid-cooled
Displacement:	100.2 ci 1.6 L
Bore/Stroke:	3.46x3.54 inches 88 x 90 mm
Power:	32.5 hp 24.2 kW
Fuel system:	direct injection
Compression:	18.5:1
Rated RPM:	2600
Torque:	73.9 lb-ft 100.2 Nm
Torque RPM:	1560
Starter volts:	12
Oil capacity:	5.1 qts 4.8 L
ROPS Coolant capacity:	5.6 qts 5.3 L
Cab Coolant capacity:	7.4 qts 7.0 L

Dimensions
Wheelbase:	68 inches 172 cm
Length:	120.2 inches 305 cm
Width:	52.4 inches 133 cm *Minimum
ROPS Weight:	2900 lbs 1315 kg
Cab Weight:	3570 lbs 1619 kg
Rear tread:	40.6/45.3/48.9/53.1/56.6 inches 103/115/124/134/143 cm
