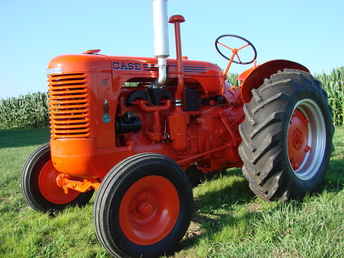

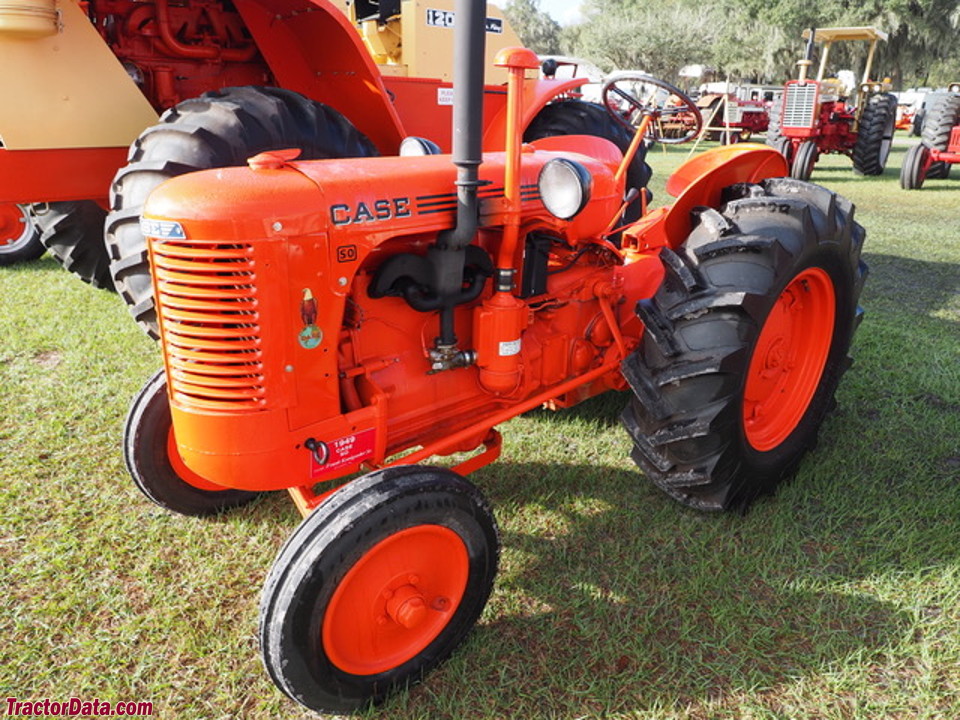

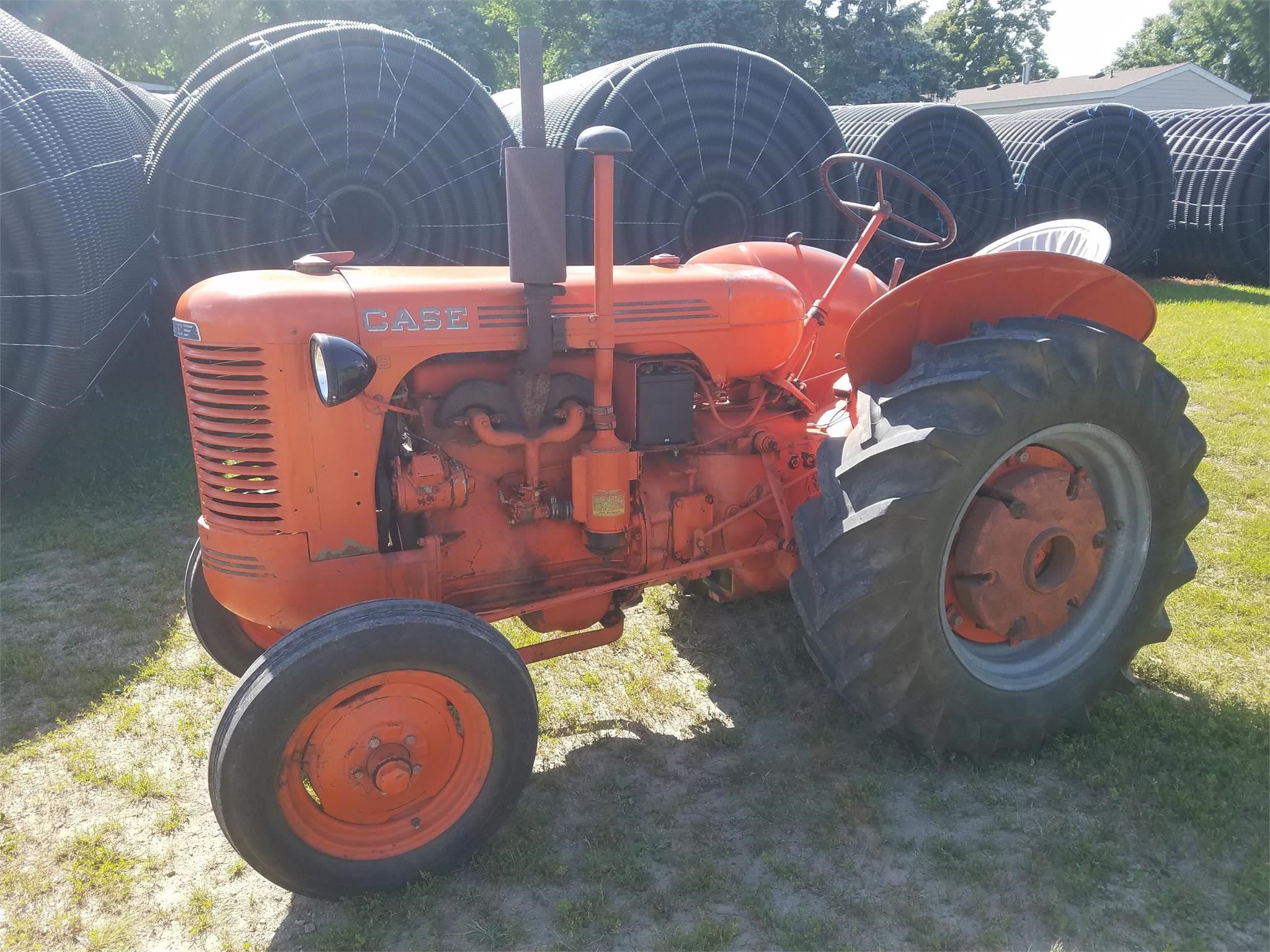

J.I. Case S
Type: Standard-tread Tractors
Contents:
Production | |
| Manufacturer: | J.I. Case |
| Type: | Standard-tread tractor |
| Factory: | Racine, Wisconsin, USA |
| The model S was the standard, fixed-wide-front version of the S series. The SC was the row-crop version. | |
Variants | |
| standard | |
| row-crop | |
| tricycle row-crop | |
| fixed-front row-crop | |
| industrial | |
| orchard |
J.I. Case S Power | |
| Drawbar (claimed): | 16 hp 11.9 kW |
| Belt (claimed): | 21 hp 15.7 kW |
| Plows: | 2 (14-inch) |
Mechanical | |
| Chassis: | 4x2 2WD |
| Steering: | manual |
| Brakes: | disc |
| Cab: | Open operator station. Steel pan seat with spring suspension. |
| Transmission: | 4-speed unsynchronized gear |
Tractor hitch | |
| Type: | Case Eagle Hitch |
Power Take-off (PTO) | |
| Rear PTO: | continuous |
| live*After 1953 | |
| Rear RPM: | 541 |
S Serial Numbers | |
| Location: | Serial number plate on tractor's instrument panel. |
| 1941: | 4500001 |
| 1942: | 4600001 |
| 1943: | 4700001 |
| 1944: | 4800001 |
| 1945: | 4900001 |
| 1946: | 5000001 |
| 1947: | 5100001 |
| 1948: | 5200001 |
| 1949: | 5300001 |
| 1950: | 5400001 |
| 1951: | 5500001 |
Engine Detail | |
| J.I. Case | |
| gasoline | |
| 4-cylinder | |
| liquid-cooled | |
| Original engine, used until 1953. | |
| Displacement: | 153.9 ci 2.5 L |
| Bore/Stroke: | 3.50x4.00 inches 89 x 102 mm |
| Rated RPM: | 1550 |
| Coolant capacity: | 16 qts 15.1 L |
Transmission | |
| Type: | unsynchronized gear |
| Gears: | 4 forward and 1 reverse |
| Clutch: | mechanical wet disc |
Dimensions | |
| Wheelbase: | 66 inches 167 cm |
| Length: | 108.5 inches 275 cm |
| Width: | 56.25 inches 142 cm |
| Height (hood): | 51 inches 129 cm |
| Weight: | 4376 lbs 1984 kg |
| Clearance (front axle): | 11.25 inches 28 cm |
| Clearance (rear axle): | 18.75 inches 47 cm |
| Rear tread: | 47.5 inches 120 cm |
