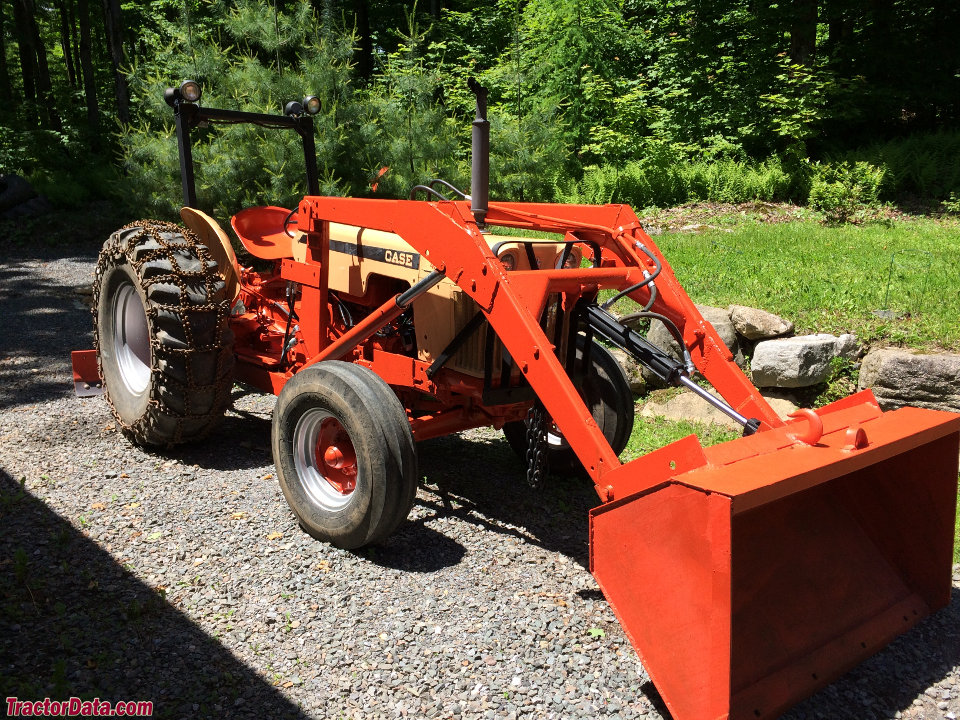

J.I. Case 430
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | J.I. Case |
| Type: | Utility tractor |
| Factories: | Rock Island, Illinois, USA |
| Racine, Wisconsin, USA | |
| Original price: | $4,400 (1969 ) |
Variants | |
| standard-front diesel | |
| row-crop diesel | |
| standard-front gas | |
| row-crop gas | |
| 445: | industrial |
J.I. Case 430 Power | |
| PTO (claimed): | 34 hp 25.4 kW |
| Plows: | 3 |
Mechanical | |
| Chassis: | 4x2 2WD |
| Steering: | manual |
| power*Power steering from 1965 and later. | |
| Brakes: | mechanical band/disc |
| Cab: | Open operator station |
| Transmissions: | 4-speed unsynchronized gear |
| 12-speed unsynchronized gear | |
| 8-speed mechanical shuttle | |
Hydraulics | |
| Type: | Dual-Control |
| Valves: | 1 |
| Pump flow: | 8.5 gpm 32.2 lpm |
Tractor hitch | |
| Rear Type: | I |
| Control: | Draft-o-Matic draft control |
| Type: | Case Eagle Hitch |
Power Take-off (PTO) | |
| Rear PTO: | live |
| independent*Independent PTO optional beginning in 1966. | |
| Rear RPM: | 540 |
| 540/1000 | |
430 Serial Numbers | |
| Location: | Plate on instrument panel |
| 1960: | 6144001 |
| 1961: | 6162601 |
| 1962: | 8190001 |
| 1963: | 8208001 |
| 1964: | 8229001 |
| 1965: | 8253501 |
| 1966: | 8279001 |
| 1967: | 8306501 |
| 1968: | 8332101 |
| 1969: | 8356251 |
Engine Detail | |
| J.I. Case | |
| diesel | |
| 4-cylinder | |
| liquid-cooled overhead valve | |
| Displacement: | 188.4 ci 3.1 L |
| Bore/Stroke: | 3.8125x4.125 inches 97 x 105 mm |
| Air cleaner: | oil bath |
| Compression: | 17.5:1 |
| Rated RPM: | 1750 |
| Starter volts: | 12 |
| Oil capacity: | 5 qts 4.7 L |
| Coolant capacity: | 13.5 qts 12.8 L |
Dimensions | |
| Wheelbase: | 75.25 inches 191 cm |
| Length: | 130.2 inches 330 cm |
| Width: | 61.375 inches 155 cm |
| Height (hood): | 50.5 inches 128 cm |
| Shiping weight: | 3125 lbs 1417 kg |
| Front tread: | 47.5 inches 120 cm |
| Rear tread: | 48 to 76 inches 121 to 193 cm |
| Rear tread: | 58/66 inches 147/167 cm |
