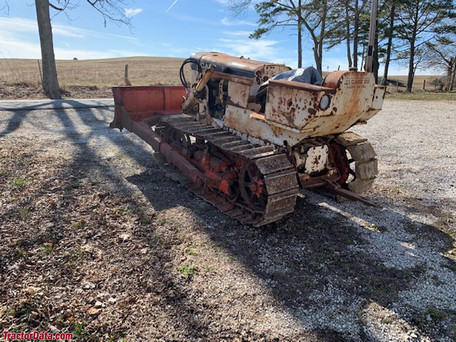

J.I. Case 310E

Production: 1961 - 1964

Production
Manufacturer:	J.I. Case
Type:	Agricultural Crawler tractor

J.I. Case 310E Power
Engine:	42 hp 31.3 kW
Drawbar (claimed):	30 hp 22.4 kW
Belt (claimed):	36 hp 26.8 kW
Plows:	3
Drawbar (tested):	29.56 hp 22.0 kW
PTO (tested):	36.89 hp 27.5 kW

Mechanical
Chassis:	crawler
Brakes:	contracting band
Cab:	Open operator station.
Transmission:	3-speed gear

Capacity
Fuel:	17 gal 64.3 L
Hydraulic system:	9 gal 34.1 L

Hydraulics
Type:	open center
Capacity:	9 gal 34.1 L
Pressure:	1500 psi 103.4 bar
Pump flow:	15 gpm 56.8 lpm

Tractor hitch
Rear lift:	700 lbs 317 kg

Power Take-off (PTO)
Rear RPM:	540 (1.375)
Engine RPM:	540@1727

Engine Detail
J.I. Case G-188D
diesel
4-cylinder
liquid-cooled
Displacement:	188.4 ci 3.1 L
Bore/Stroke:	3.8125x4.125 inches 97 x 105 mm
Power:	40 hp 29.8 kW
Air cleaner:	oil bath
Compression:	17.5:1
Rated RPM:	1850
Torque:	128 lb-ft 173.6 Nm
Torque RPM:	1350
Starter volts:	12
Coolant capacity:	13 qts 12.3 L

Transmission
Type:	gear
Gears:	3 forward and 1 reverse
Clutch:	279.4mm dry disc

Dimensions
Wheelbase:	57 inches 144 cm
Length:	101 inches 256 cm
Width:	62 inches 157 cm *Minimum width with 14-inch shoes and 48-inch gauge.
Height (exhaust):	69 inches 175 cm
Shiping weight:	5300 lbs 2404 kg
Operating weight:	7545 lbs 3422 kg
Ground clearance:	15 inches 38 cm
Gauge:	48 inches 121 cm
Gauge:	60 inches 152 cm
Gauge:	72 inches 182 cm
