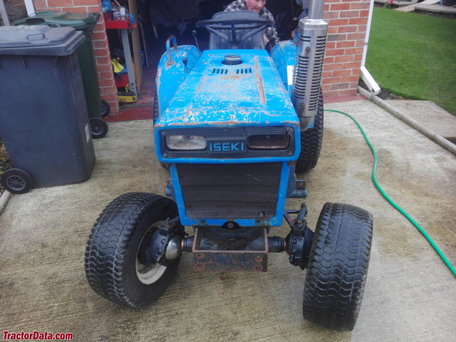

Iseki TX2160

Production: 1985 - 1991

Production
Manufacturer:	Iseki
Type:	Compact Utility tractor
Original price:	GBP5795 (1988 gear )
Original price:	GBP6495 (1988 hydro )

Variants
TX2160F:	4WD

Iseki TX2160 Power
Engine:	16 hp 11.9 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD (TX2160F)
Steering:	manual
Brakes:	mechanical dry shoe
Transmission:	6-speed gear

Hydraulics
Pressure:	1850 psi 127.6 bar
Total flow:	2.7 gpm 10.2 lpm

Tractor hitch
Rear Type:	0
Rear lift (at ends):	838 lbs 380 kg

Power Take-off (PTO)
Rear RPM:	540/1000

Electrical
Charging system:	alternator
Charging amps:	35
Battery volts:	12
Battery AH:	45

Engine Detail
Mitsubishi K3B
diesel
3-cylinder
Displacement:	51.8 ci 0.8 L
Bore/Stroke:	2.677x3.071 inches 68 x 78 mm
Power:	16 hp 11.9 kW
Rated RPM:	2600
Starter type:	electric
Oil capacity:	3.2 qts 3.0 L
Intake valve clearance:	0.014 inches 0.356 mm
Exhaust valve clearance:	0.014 inches 0.356 mm

Transmission
Type:	gear
Gears:	6 forward and 2 reverse
Oil capacity:	13 qts 12.3 L

Dimensions
Wheelbase:	50.4 inches 128 cm
Length:	80.3 inches 203 cm
Width:	44.1 inches 112 cm
Weight:	1,179 lbs 534 kg (2WD)
1,279 lbs 580 kg (4WD)
Ground clearance:	9.8 inches 24 cm (4WD)
