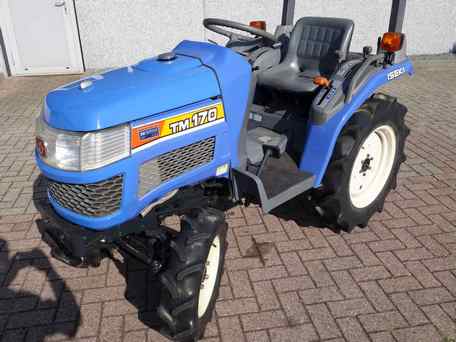

Iseki TM170

Production: 2002 - 2005

Production
Manufacturer:	Iseki
Type:	Compact Utility tractor

Iseki TM170 Power
Engine:	17 hp 12.7 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Brakes:	wet disc
Cab:	Two-post ROPS.
Transmission:	6-speed gear

Tractor hitch
Rear Type:	I
Control:	position control

Power Take-off (PTO)
Rear RPM:	540 (1.375)

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Iseki E3100
diesel
3-cylinder
liquid-cooled
Displacement:	61.4 ci 1.0 L
Bore/Stroke:	2.91x3.07 inches 74 x 78 mm
Power:	17 hp 12.7 kW
Rated RPM:	2500
Starter:	electric
Starter volts:	12

Transmission
Type:	gear
Gears:	6 forward and 2 reverse
Clutch:	dry disc

Dimensions
Wheelbase:	51.2 inches 130 cm
Length:	81.5 inches 207 cm
Width:	39 inches 99 cm
Height:	74 inches 187 cm
Weight:	1301 lbs 590 kg
Ground clearance:	11.8 inches 29 cm
Front tread:	30.9 inches 78 cm
Rear tread:	31.5 to 35.8 inches 80 to 90 cm
