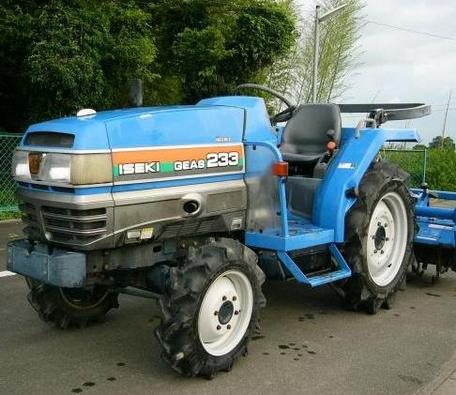

Iseki TG233

Production: 2004

Production
Manufacturer:	Iseki
Type:	Compact Utility tractor

Iseki TG233 Power
Engine:	22.7 hp 16.9 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	wet disc
Cab:	Two-post ROPS. Cab optional.
Transmission:	16-speed

Tractor hitch
Rear Type:	I
Control:	position control

Power Take-off (PTO)
Rear RPM:	577/767/1052/1243 (1.375)

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Iseki E3CF
diesel
3-cylinder
liquid-cooled
Displacement:	89.3 ci 1.5 L
Power:	22.7 hp 16.9 kW
Rated RPM:	2500
Starter:	electric
Starter volts:	12

Transmission
Gears:	16 forward and reverse
Clutch:	dry disc

Dimensions
Wheelbase:	61.4 inches 155 cm
Length:	116.9 inches 296 cm
ROPS Width:	52.4 inches 133 cm
Cab Width:	55.5 inches 140 cm
Height:	76.4 inches 194 cm
ROPS Weight:	2646 lbs 1200 kg
Cab Weight:	2998 lbs 1359 kg
Ground clearance:	12.6 inches 32 cm
Front tread:	37.8 inches 96 cm
Rear tread:	39.8 to 46.1 inches 101 to 117 cm
