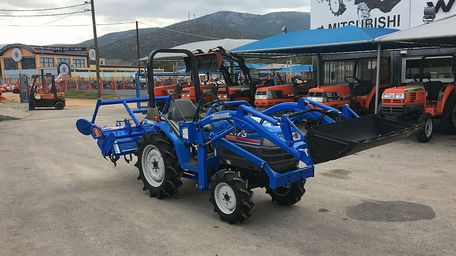

Iseki TF193

Type: Compact Utility Tractors

Contents:

Production

Manufacturer:Iseki
Type:Compact Utility tractor

Iseki TF193 Power

Engine:19.2 hp 14.3 kW
PTO (claimed):17.2 hp 12.8 kW

Mechanical

Chassis:4x4 MFWD 4WD
Cab:Two-post folding ROPS.
Transmissions:6-speed
6-speed shuttle

Tractor hitch

Rear Type:0

Power Take-off (PTO)

Rear RPM:540 (1.375)
Engine RPM:522@2500 783@2500 1183@2500

Electrical

Ground:negative
Battery volts:12

Engine Detail

E3112-B
diesel
3-cylinder
liquid-cooled
Displacement:68.5 ci 1.1 L
Bore/Stroke:3.08x3.07 inches 78 x 78 mm
Power:19.2 hp 14.3 kW
Rated RPM:2500
Starter:electric
Starter volts:12

Dimensions

Wheelbase:54.9 inches 139 cm
Width:43.5 inches 110 cm
Height:77 inches 195 cm
Weight:1693 lbs 767 kg
Ground clearance:13.2 inches 33 cm
Front tread:34.7 inches 88 cm
Rear tread:33.5/39.6 inches 85/100 cm
