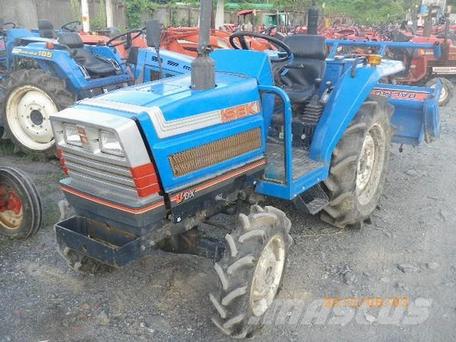

Iseki TA210

Production: 1985 - 1987

Production
Manufacturer:	Iseki
Type:	Compact Utility tractor

Variants
TA210F:	4WD

Iseki TA210 Power
Engine:	21 hp 15.7 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Cab:	Open operator station.
Transmission:	16-speed

Tractor hitch
Rear Type:	JIS1

Power Take-off (PTO)
Rear RPM:	540 (1.375)
Engine RPM:	565@2500 733@2500 898@2500 1244@2500

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Isuzu E3AG1
diesel
3-cylinder
liquid-cooled
Displacement:	87.2 ci 1.4 L
Bore/Stroke:	3.307x3.385 inches 84 x 86 mm
Power:	21 hp 15.7 kW
Rated RPM:	2500
Starter:	electric
Starter volts:	12

Transmission
Gears:	16 forward and reverse

Dimensions
Wheelbase:	60.6 inches 153 cm
Length:	114.4 inches 290 cm
Width:	49.2 inches 124 cm
Height (exhaust):	74.4 inches 188 cm
2WD Weight:	2127 lbs 964 kg
4WD Weight:	2403 lbs 1090 kg
Ground clearance:	10 inches 25 cm
2WD Front tread:	37.8/40.2 inches 96/102 cm
4WD Front tread:	40.2 inches 102 cm
Rear tread:	37/42.9 inches 93/108 cm
