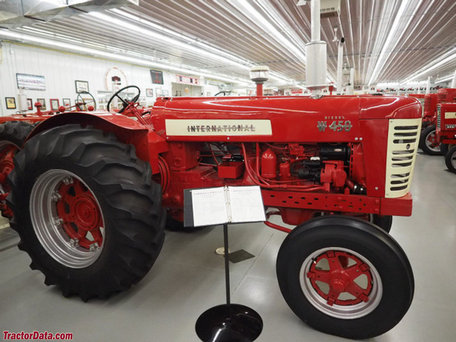

International Harvester W-450
Type: Standard-tread Tractors
Contents:
Production | |
| Manufacturer: | International Harvester |
| Type: | Standard-tread tractor |
| Factory: | Rock Island, Illinois, USA |
Variants | |
| row-crop | |
| standard-front | |
| high-crop |
International Harvester W-450 Power | |
| Drawbar (claimed): | 34-37 hp 25.4 kW |
| PTO (claimed): | 41-46 hp 30.6 kW |
| Drawbar (tested): | 47.30 hp 35.3 kW |
| Belt (tested): | 51.94 hp 38.7 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| Cab: | Open operator station. |
| Transmission: | 10-speed two-speed power shift |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540 |
W-450 Serial Numbers | |
| 1956: | 501 |
| 1957: | 567 |
| 1958: | 1661 |
| Final: | 2295 |
Engine Detail | |
| International Harvester | |
| gasoline | |
| 4-cylinder | |
| liquid-cooled vertical I-head | |
| Displacement: | 281 ci 4.6 L |
| Bore/Stroke: | 4.125x5.25 inches 105 x 133 mm |
| Compression: | 6.6:1 |
| Rated RPM: | 1450 |
| Starter volts: | 6 |
| Coolant capacity: | 28 qts 26.5 L |
Transmission | |
| Transmission: | Torque Amplifier |
| Type: | two-speed power shift |
| Gears: | 10 forward and 2 reverse |
Dimensions | |
| Wheelbase: | 82 inches 208 cm |
| Length: | 130 inches 330 cm |
| Width: | 84 inches 213 cm |
| Height: | 95 inches 241 cm |
| Shiping weight: | 5720 lbs 2594 kg |
