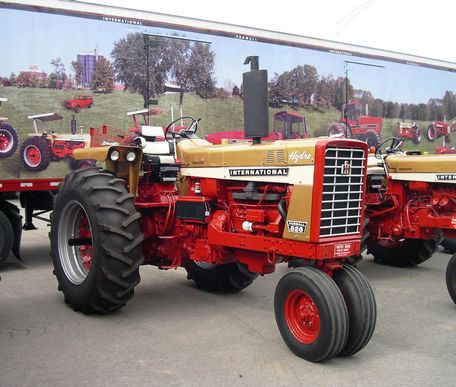

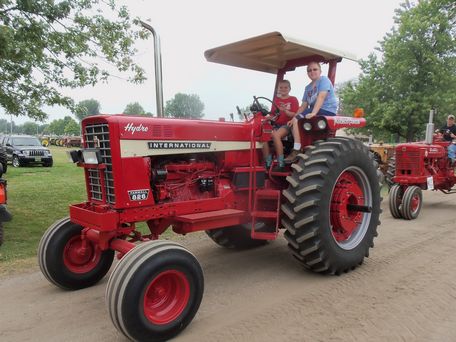

International Harvester 826
Contents:
Production | |
| Manufacturer: | International Harvester |
| Factory: | Rock Island, Illinois, USA |
| Original price: | $9,600 (1971 ) |
International Harvester 826 Power | |
| Gear Drawbar (claimed): | 79 hp 58.9 kW |
| Hydro Drawbar (claimed): | 61 hp 45.5 kW |
| Gear PTO (claimed): | 92 hp 68.6 kW |
| Hydro PTO (claimed): | 84 hp 62.6 kW |
| Drawbar (tested): | 78.92 hp 58.9 kW |
| PTO (tested): | 92.19 hp 68.7 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Steering: | power |
| Brakes: | hydraulic dry disc |
| Cab: | Open operator station. Cab optional. |
| Transmissions: | 16-speed two-speed power shift |
| hydrostatic | |
Hydraulics | |
| Type: | open center |
Tractor hitch | |
| Rear Type: | II |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540/1000 |
826 Serial Numbers | |
| Location: | Clutch housing, left side |
| 1969: | 7501 (Farmall) |
| 1970: | 8153 (Farmall) |
| 1971: | 16352 (Farmall) |
| 1969: | 7501 (IH) |
| 1970: | 7518 (IH) |
| 1971: | 7719 (IH) |
Engine Detail | |
| International Harvester D-358 | |
| diesel | |
| 6-cylinder | |
| liquid-cooled | |
| Displacement: | 358 ci 5.9 L |
| Bore/Stroke: | 3.875x5.0625 inches 98 x 129 mm |
| Air cleaner: | dual stage dry |
| Compression: | 16:1 |
| Rated RPM: | 2400 |
| Starter volts: | 12 |
Dimensions | |
| Wheelbase: | 105 inches 266 cm |
| Gear Operating weight: | 9860 lbs 4472 kg |
| Ballasted weight: | 13840 lbs 6277 kg |
