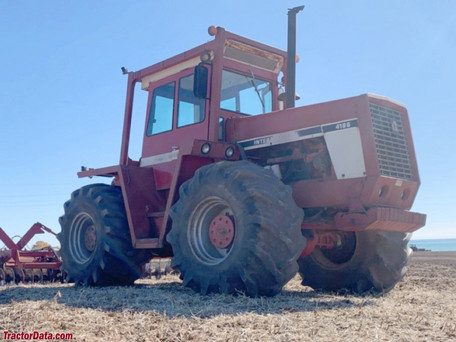

International Harvester 4186
Contents:
Production | |
| Manufacturer: | International Harvester |
| Type: | Four-wheel Drive (4WD) tractor |
| Factory: | Rock Island, Illinois, USA |
| Original price: | $32,500 (1978 ) |
International Harvester 4186 Power | |
| Drawbar (claimed): | 130 hp 96.9 kW |
| PTO (claimed): | 150 hp 111.9 kW |
| Drawbar (tested): | 127.55 hp 95.1 kW |
| PTO (tested): | 150.63 hp 112.3 kW |
Mechanical | |
| Chassis: | 4x4 4WD |
| Steering: | hydraulic power |
| Brakes: | hydraulic expanding shoe |
| Cab: | Cab standard |
| Transmission: | 8-speed gear |
Hydraulics | |
| Type: | open center |
| Valves: | 2 |
| Pump flow: | 18 gpm 68.1 lpm |
Tractor hitch | |
| Rear Type: | III/II |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 1000 |
| Engine RPM: | 1000@1159 |
Engine Detail | |
| International Harvester DT-436 | |
| turbocharged diesel | |
| 6-cylinder | |
| liquid-cooled | |
| Displacement: | 436 ci 7.1 L |
| Bore/Stroke: | 4.30x5.00 inches 109 x 127 mm |
| Fuel system: | direct injection |
| Rated RPM: | 2400 |
| Starter volts: | 12 |
Transmission | |
| Type: | gear |
| Gears: | 8 forward and 4 reverse |
| Clutch: | 355.6mm dry disc |
| Four gears in two ranges, plus reverse range. | |
Dimensions | |
| Wheelbase: | 102 inches 259 cm |
| Length: | 194 inches 492 cm |
| Height: | 139 inches 353 cm |
| Shiping weight: | 15900 lbs 7212 kg |
| Max weight: | 22400 lbs 10160 kg |
| Front tread: | 80 inches 203 cm |
| Rear tread: | 80 inches 203 cm |
