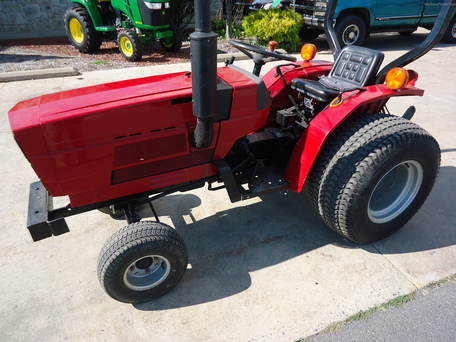

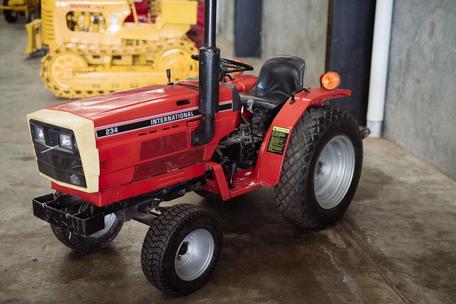

International Harvester 234

Production: 1982 - 1984

Production
Distributor:	International Harvester
Manufacturer:	Mitsubishi
Type:	Compact Utility tractor
Factory:	Japan

International Harvester 234 Power
Engine:	18 hp 13.4 kW
PTO (claimed):	15.2 hp 11.3 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD (optional)
Cab:	two-post ROPS
canopy optional
Transmissions:	6-speed gear
hydrostatic

Capacity
Fuel:	4.8 gal 18.2 L
Hydraulic system:	3.1 gal 11.7 L

Hydraulics
Capacity:	3.1 gal 11.7 L

Tractor hitch
Rear Type:	1

Power Take-off (PTO)
Rear PTO:	transmission
Rear RPM:	540
Front PTO:	independent (optional)
Front RPM:	2700

234 Serial Numbers
Location:	Tractor frame, front-right side.
1982:	8010
1983:	8110
1984:	8383
1985:	8646

Engine Detail
Mitsubishi
diesel
3-cylinder
liquid-cooled
Displacement:	51.8 ci 0.8 L
Bore/Stroke:	2.68x3.07 inches 68 x 78 mm
Power:	18 hp 13.4 kW
Rated RPM:	2700
Oil capacity:	3.2 qts 3.0 L
Coolant capacity:	5.2 qts 4.9 L

Dimensions
Wheelbase:	56 inches 142 cm
Length:	103.4 inches 262 cm
Width:	36.9 inches 93 cm (min)
Height (steering wheel):	46.4 inches 117 cm (2WD)
46.6 inches 118 cm (4WD)
Shiping weight:	1,205 lbs 546 kg (2WD)
Ground clearance:	11.2 inches 28 cm (2WD)
8.5 inches 21 cm (4WD)
Rear tread:	29.1 to 35 inches 73 to 88 cm
