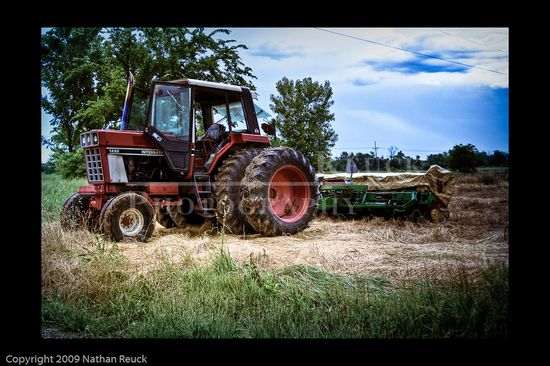

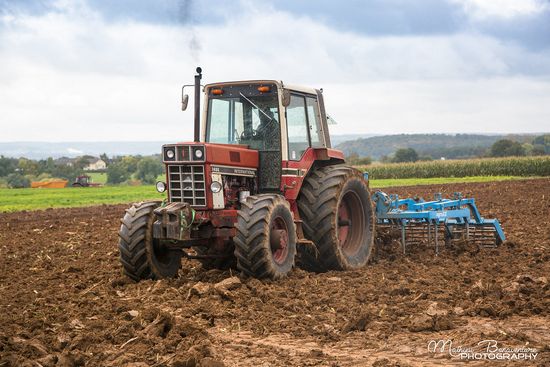

International Harvester 1486
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | International Harvester |
| Type: | Row-Crop tractor |
| Factory: | Rock Island, Illinois, USA |
| Total built: | 21,117 |
| Original price: | $38,400 (1981 ) |
International Harvester 1486 Power | |
| Drawbar (claimed): | 126 hp 94.0 kW |
| PTO (claimed): | 146 hp 108.9 kW |
| Drawbar (tested): | 123.20 hp 91.9 kW |
| PTO (tested): | 145.77 hp 108.7 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Steering: | power assist |
| Brakes: | hydraulic disc |
| Cab: | Cab standard. |
| Transmission: | 16-speed |
Capacity | |
| Fuel: | 63 gal 238.5 L |
| 22 gal 83.3 L (auxiliary) | |
| Hydraulic system: | 22.5 gal 85.2 L |
Hydraulics | |
| Type: | open center |
| Capacity: | 22.5 gal 85.2 L |
| Valves: | 2 |
| Pump flow: | 12 gpm 45.4 lpm |
Tractor hitch | |
| Rear Type: | III |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540/1000 |
1486 Serial Numbers | |
| Location: | Frame, right side ahead of the rear axle. |
| 1976: | 8601 |
| 1977: | 9798 |
| 1978: | 14851 |
| 1979: | 18774 |
| 1980: | 23162 |
| 1981: | 27426 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 42 |
| 61*High-output alternator with cab. | |
| Batteries: | 2 |
| Battery CCA: | 470 |
| Battery volts: | 12 |
Engine Detail | |
| International Harvester DT436 | |
| turbocharged diesel | |
| 6-cylinder | |
| liquid-cooled | |
| Displacement: | 436 ci 7.1 L |
| Bore/Stroke: | 4.30x5.00 inches 109 x 127 mm |
| Air cleaner: | dual dry element |
| Rated RPM: | 2600 |
| Coolant capacity: | 27 qts 25.6 L |
Transmission | |
| Transmission: | Torque Amplifier |
| Gears: | 16 forward and 8 reverse |
| Oil capacity: | 108 qts 102.2 L |
| Oil type: | IH Hy-Tran/B-6 |
Dimensions | |
| Wheelbase: | 105 inches 266 cm (wide-tread front) |
| 101 inches 256 cm (tricycle front) | |
| 99 inches 251 cm (4WD) | |
| Length: | 168 inches 426 cm (2WD) |
| 167 inches 424 cm (4WD) | |
| Width: | 102 inches 259 cm |
| Height (cab): | 115 inches 292 cm |
| Ground clearance: | 14 inches 35 cm |
