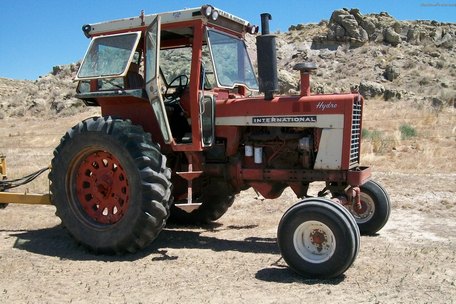

International Harvester 1026
Type: Standard-tread Tractors
Contents:
Production | |
| Manufacturer: | International Harvester |
| Type: | Standard-tread tractor |
| Factory: | Rock Island, Illinois, USA |
| Total built: | 59 (IH wheatland/industrial) |
| 2,414 (Farmall) | |
| Original price: | $11,800 (1971) |
Variants | |
| wheatland | |
| row-crop |
International Harvester 1026 Power | |
| Drawbar (tested): | 80.24 hp 59.8 kW |
| PTO (tested): | 112.45 hp 83.9 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Steering: | power |
| Brakes: | differential hydraulic dry disc |
| Cab: | Open operator station. |
| Transmission: | hydrostatic |
Tractor hitch | |
| Rear Type: | II |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540/1000 |
1026 Serial Numbers | |
| Location: | Hydrostatic housing, left side |
| 1970: | 7501 (IH) |
| 1971: | 7550 (IH) |
| 1970: | 7501 (Farmall) |
| 1971: | 9707 (Farmall) |
Engine Detail | |
| International Harvester DT-407 | |
| turbocharged diesel | |
| 6-cylinder | |
| liquid-cooled | |
| Displacement: | 406.9 ci 6.7 L |
| Bore/Stroke: | 4.321x4.625 inches 110 x 117 mm |
| Air cleaner: | dual-stage dry |
| Compression: | 16:1 |
| Rated RPM: | 2400 |
| Starter volts: | 12 |
Transmission | |
| Type: | hydrostatic |
| Gears: | variable forward and reverse |
Dimensions | |
| Operating weight: | 11,100 lbs 5034 kg |
| Ballasted weight: | 14,975 lbs 6792 kg |
