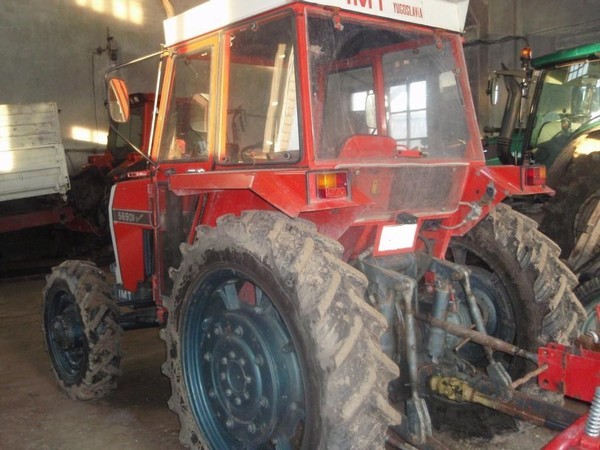

IMT 569

Production: 1986

Contents:

Production

Manufacturer:IMT

IMT 569 Power

Engine:63 hp 47.0 kW

Mechanical

Chassis:4x2 2WD
4x4 MFWD 4WD optional
Steering:hydrostatic power
Brakes:disc
Transmission:10-speed

Hydraulics

Total flow:4.8 gpm 18.2 lpm
8.7 gpm 32.9 lpm optional

Tractor hitch

Rear lift:4189.5 lbs 1900 kg

Power Take-off (PTO)

Rear RPM:540

Engine Detail

DM 34/T
diesel
4-cylinder
Displacement:203.2 ci 3.3 L
Bore/Stroke:3.60x5.00 inches 91 x 127 mm
Power:63 hp 47.0 kW
Rated RPM:2250
Torque:160 lb-ft 217.0 Nm
Torque RPM:1350

Transmission

Gears:10 forward and 2 reverse

Dimensions

Wheelbase:87.4 inches 221 cm
Length:154.3 inches 391 cm
Height:103.9 inches 263 cm
Weight:8,048 lbs 3650 kg
