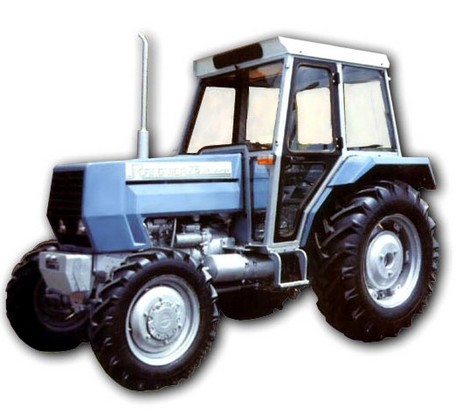

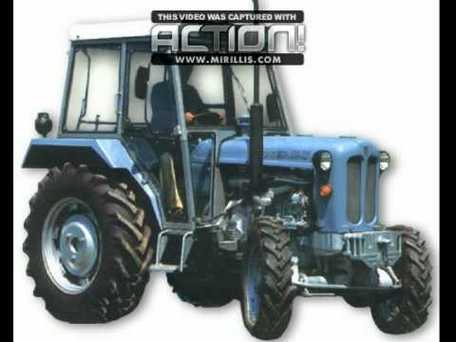

IMR Rakovica R 76 Super
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | IMR Rakovica |
| Type: | Utility tractor |
| Factory: | Belgrade, Serbia |
IMR Rakovica R 76 Super Power | |
| Engine: | 75 hp 55.9 kW |
| PTO (claimed): | 63 hp 47.0 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Differential lock: | mechanical rear |
| Steering: | hydrostatic power |
| Brakes: | mechanical |
| Trailer brakes: | pneumatic |
| Cab: | Open operator station. Cab optional with heater. |
| Transmission: | 6-speed gear |
Capacity | |
| Fuel: | 15.85 gal 60.0 L |
| Steering: | 1.6 qts 1.5 L |
Hydraulics | |
| Type: | open center |
| Pressure: | 2466 psi 170.0 bar |
| Steering cap.: | 1.6 qts 1.5 L |
Tractor hitch | |
| Rear Type: | II |
| Rear lift (at ends): | 4496 lbs 2039 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540 (1.375) |
| 540/1000*Optional | |
| 540/750*Optional | |
| Engine RPM: | 540@2000 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 45 |
| Charging volts: | 14 |
| Batteries: | 2 |
| Battery volts: | 12 |
| Battery AH: | 55 |
Engine Detail | |
| IMR Rakovica S44T | |
| diesel | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement: | 248.4 ci 4.1 L |
| Bore/Stroke: | 3.975x5.00 inches 101 x 127 mm |
| Power: | 75 hp 55.9 kW |
| Fuel system: | direct-injection |
| Rated RPM: | 2250 |
| Torque: | 200.6 lb-ft 272.0 Nm |
| Torque RPM: | 1350 |
| Starter: | electric |
| Starter volts: | 12 |
| Starter power: | 4 hp 3.0 kW |
| Oil capacity: | 8.5 qts 8.0 L |
| Coolant capacity: | 23.2 qts 22.0 L |
Transmission | |
| Transmission: | MT 280 6B |
| Type: | gear |
| Gears: | 6 forward and 2 reverse |
| Clutch: | dry discs |
| Oil capacity: | 18 qts 17.0 L |
| Three gears, plus reverse, in two ranges. | |
Dimensions | |
| Length: | 139.8 inches 355 cm |
| Width: | 74.8 inches 189 cm *Rear tires |
| Height (cab): | 98.8 inches 250 cm |
| Weight: | 6393 lbs 2899 kg |
| Ground clearance: | 17.7 inches 44 cm |
| Front tread: | 54 to 73.6 inches 137 to 186 cm |
| Rear tread: | 55.1 to 74.8 inches 139 to 189 cm |
