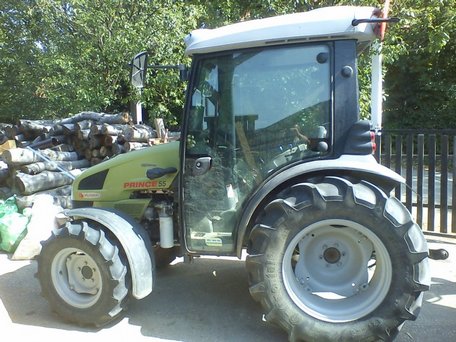

Hurlimann Prince 55

Production: 2007

Production
Manufacturer:	Hurlimann (a part of SAME)
Type:	Compact Utility tractor

Hurlimann Prince 55 Power
Engine (gross):	51 hp 38.0 kW
Engine (net):	47 hp 35.0 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Differential lock:	electro-hydraulic rear
Steering:	hydrostatic power
Brakes:	mechanical wet disc
Cab:	Two-post ROPS.
Transmissions:	12-speed partially synchronized
16-speed partially synchronized

Hydraulics
Pump flow:	7.9 gpm 29.9 lpm

Tractor hitch
Control:	depth and draft control
Rear lift:	2646 lbs 1200 kg
Front lift:	882 lbs 400 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000
540/540E
Mid PTO:	independent
Mid RPM:	2000
Front PTO:	independent
Clutch:	electro-hydraulic wet disc
Front RPM:	1000

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Mitsubishi
turbocharged diesel
4-cylinder
liquid-cooled
Displacement:	107.3 ci 1.8 L
Bore/Stroke:	3.071x3.622 inches 78 x 92 mm
Emissions:	Stage III
Rated Power (ECE R24):	47 hp 35.0 kW
Rated Power (2000/25/CE):	51 hp 38.0 kW
Fuel system:	indirect injection
Air cleaner:	dry
Rated RPM:	3000
Torque:	90 lb-ft 122.0 Nm
Torque RPM:	2000
Starter:	electric
Starter volts:	12

Dimensions
Wheelbase:	68.7 inches 174 cm
Length:	117.3 inches 297 cm
Width:	53.5 inches 135 cm
Height (ROPS):	79.5 inches 201 cm
Weight:	2910 lbs 1319 kg
Ground clearance:	15.4 inches 39 cm
Front tread:	41 to 51.8 inches 104 to 131 cm
Rear tread:	39.6 to 52 inches 100 to 132 cm
