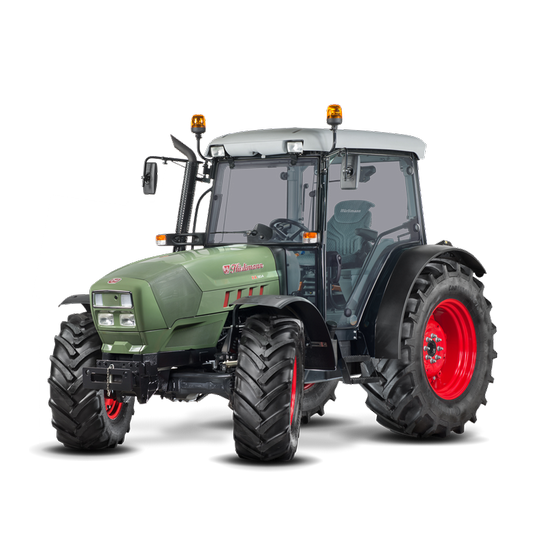

Hurlimann H-658 XA

Production: 2000 - 2004

Contents:

Production

Manufacturer:Hurlimann

Hurlimann H-658 XA Power

Engine:83 hp 61.9 kW

Mechanical

Chassis:4x2 2WD
4x4 MFWD 4WD optional
Steering:hydrostatic power
Transmissions:20-speed
30-speed

Hydraulics

Pump flow:9.5 gpm 36.0 lpm

Tractor hitch

Rear lift:7938 lbs 3600 kg

Power Take-off (PTO)

Rear RPM:540, 750

Engine Detail

SAME
turbocharged diesel
4-cylinder
Displacement:244.1 ci 4.0 L
Bore/Stroke:4.1338x4.5472 inches 105 x 115 mm
Power:83 hp 61.9 kW
Rated RPM:2350
Torque:228.7 lb-ft 310.1 Nm
Torque RPM:1400

Dimensions

Wheelbase:88.2 inches 224 cm
Length:151.6 inches 385 cm
Height:96.1 inches 244 cm
Weight:5865 lbs 2660 kg
6372 lbs 2890 kg (4WD)
