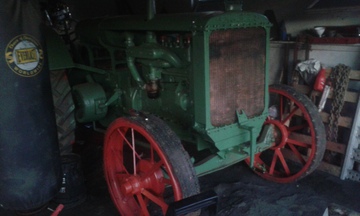

Huber 20-36 Light Four

Production: 1928 - 1935
Type: Standard-tread Tractors

Contents:

Production

Manufacturer:Huber
Type:Standard-tread tractor
Factory:Marion, Ohio, USA

Huber 20-36 Light Four Power

Drawbar (claimed):20 hp 14.9 kW
Belt (claimed):36 hp 26.8 kW
Plows:4
Drawbar (tested):29.18 hp 21.8 kW
Belt (tested):42.26 hp 31.5 kW

Mechanical

Chassis:4x2 2WD
Steering:manual
Cab:Open operator station.
Transmission:2-speed gear

Engine Detail

Waukesha
gasoline
4-cylinder
liquid-cooled
Displacement:443 ci 7.3 L
Bore/Stroke:4.75x6.25 inches 121 x 159 mm
Air cleaner:oil bath

Transmission

Type:gear
Gears:2 forward and 1 reverse
Clutch:dry disc

Dimensions

Wheelbase:81.5 inches 207 cm
Length:135 inches 342 cm
Width:73 inches 185 cm
Height (hood):61 inches 154 cm
Operating weight:6575 lbs 2982 kg
