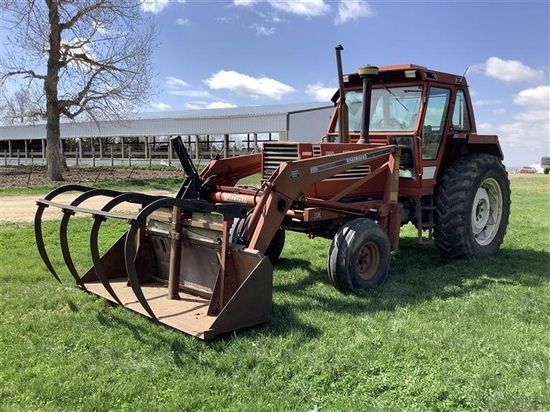

Hesston 1380
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | Hesston (a part of Fiat) |
| Type: | Row-Crop tractor |
| Original price: | $47,050 (1984) |
Variants | |

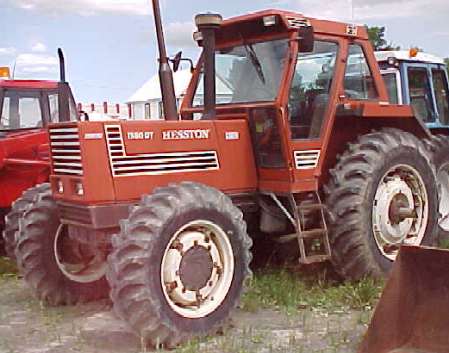

| 1380DT: | 4WD |
Hesston 1380 Power | |
| PTO (claimed): | 122 hp 91.0 kW |
| Drawbar (tested): | 102.45 hp 76.4 kW |
| PTO (tested): | 123.16 hp 91.8 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD optional | |
| Steering: | hydrostatic power |
| Brakes: | differential hydraulic wet disc |
| Cab: | Supercomfort cab standard with air conditioning |
| Transmissions: | 12-speed |
| 24-speed | |
Hydraulics | |
| Pressure: | 2450 psi 168.9 bar |
| Valves: | 3 |
| Pump flow: | 13.3 gpm 50.3 lpm |
Tractor hitch | |
| Rear Type: | II |
| IIIN optional | |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540/1000 |
Electrical | |
| Charging system: | alternator |
| Charging amps: | 65 |
Engine Detail | |
| Fiat 8065-24 | |
| turbocharged diesel | |
| 6-cylinder | |
| liquid-cooled | |
| Displacement: | 335 ci 5.5 L |
| Bore/Stroke: | 4.05x4.33 inches 103 x 110 mm |
| Compression: | 15.7:1 |
| Starter volts: | 12 |
Dimensions | |
| Wheelbase: | 108.3 inches 275 cm (2WD) |
| 105.3 inches 267 cm (4WD) | |
| Length: | 162.8 inches 413 cm (2WD) |
| 164.8 inches 418 cm (4WD) | |
| Height (hood): | 70.5 inches 179 cm |
| Height (cab): | 112 inches 284 cm |
