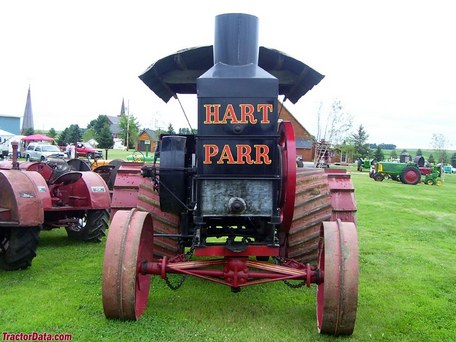

Hart-Parr Old Reliable 30-60

Production: 1907 - 1918

Production
Manufacturer:	Hart-Parr
Type:	Standard-tread tractor
Factory:	Charles City, Iowa, USA
Total built:	3,798

Hart-Parr Old Reliable 30-60 Power
Drawbar (claimed):	30 hp 22.4 kW
Belt (claimed):	60 hp 44.7 kW

Mechanical
Chassis:	4x2 2WD
Steering:	manual
Cab:	Open operator station with steel canopy.
Transmission:	1-speed

Old Reliable 30-60 Serial Numbers
1907:	1605
1908:	1811
1909:	2325
1910:	2432
1911:	3311
1912:	4212
1913:	4814
1914:	5262
1915:	5441
1916:	5522
1917:	5552
1918:	5641

Engine Detail
Hart-Parr
kerosene
2-cylinder
liquid-cooled
Displacement:	2356.2 ci 38.6 L
Bore/Stroke:	10.00x15.00 inches 254 x 381 mm
Rated RPM:	300
Coolant capacity:	96 qts 90.9 L (original)
200 qts 189.3 L (late)

Transmission
Transmission:	gear
Gears:	1 forward and reverse

Dimensions
Length:	200 inches 508 cm
Width:	106 inches 269 cm
Height:	148 inches 375 cm
Weight:	20,100 lbs 9117 kg
