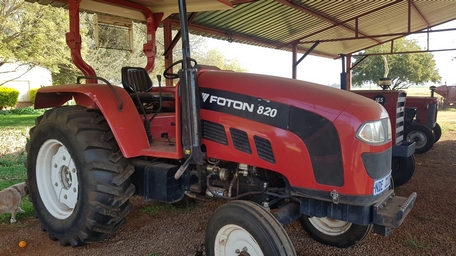

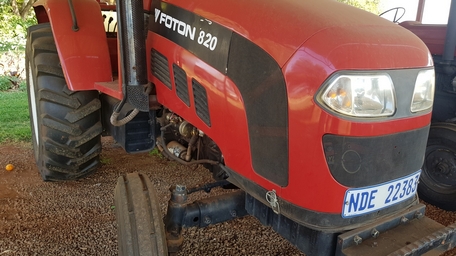

Foton 820

Contents:

Production

Manufacturer:Foton

Variants

824:4WD

Foton 820 Power

Engine:81.4 hp 60.7 kW

Mechanical

Chassis:4x2 2WD
Steering:power
Brakes:disc
Transmission:8-speed

Capacity

Fuel:26.4 gal 99.9 L
Hydraulic system:4.5 gal 17.0 L

Hydraulics

Type:open
Capacity:4.5 gal 17.0 L

Power Take-off (PTO)

Rear PTO:independent
Rear RPM:540/1000

Electrical

Ground:negative
Charging amps:35.7
Battery volts:12

Engine Detail

diesel
4-cylinder
liquid-cooled
Displacement:264.2 ci 4.3 L
Bore/Stroke:4.134x4.921 inches 105 x 125 mm
Power:81.4 hp 60.7 kW
Rated RPM:2300
Oil capacity:18 qts 17.0 L
Coolant capacity:14.8 qts 14.0 L

Transmission

Gears:8 forward and 4 reverse

Dimensions

Wheelbase:93.2 inches 236 cm
Length:167.1 inches 424 cm
Width:76.9 inches 195 cm
Height:110.6 inches 280 cm
Weight:7,915 lbs 3590 kg
Ground clearance:18.7 inches 47 cm
