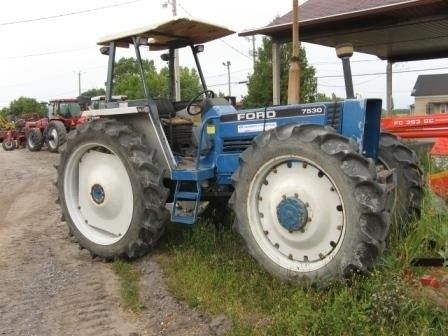

Ford 7530

Production: 1992 - 1996

Production
Manufacturer:	Ford
Type:	High-Clearance tractor
Original price:	$40,000 (1996 )

Ford 7530 Power
PTO (claimed):	91 hp 67.9 kW

Mechanical
Chassis:	4x4 4WD
Brakes:	disc
Cab:	Four-post fixed ROPS.
Transmission:	20-speed synchromesh

Hydraulics
Type:	open center
Valves:	2 or 3
Pump flow:	11.6 gpm 43.9 lpm

Tractor hitch
Rear Type:	II
Rear lift:	5852 lbs 2654 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	65
Battery volts:	12

Engine Detail
Fiat 8065.06
diesel
6-cylinder
liquid-cooled
Displacement:	330.7 ci 5.4 L
Bore/Stroke:	3.94x4.53 inches 100 x 115 mm
Rated RPM:	2500
Starter:	electric
Starter volts:	12
Oil capacity:	14.4 qts 13.6 L

Transmission
Type:	synchromesh
Gears:	20 forward and 4 reverse
Five gears in four ranges.

Dimensions
Wheelbase:	100 inches 254 cm
Length:	168 inches 426 cm
Height (ROPS):	108 inches 274 cm
Weight:	8074 lbs 3662 kg
Clearance (front axle):	25 inches 63 cm
Clearance (drawbar):	20 inches 50 cm
Front tread:	65 to 85 inches 165 to 215 cm
Rear tread:	63 to 84 inches 160 to 213 cm
