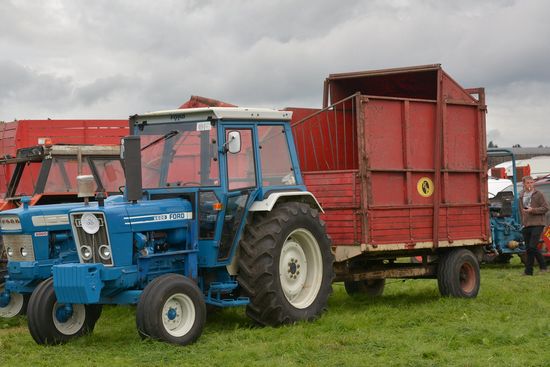

Ford 6600

Production: 1976 - 1984

Production
Manufacturer:	Ford
Type:	Row-Crop tractor
Factory:	São Bernardo do Campo, Brazil

Ford 6600 Power
Engine:	79 hp 58.9 kW
PTO (claimed):	74 hp 55.2 kW

Mechanical
Chassis:	4x2 2WD
Differential lock:	mechanical rear
Steering:	mechanical
hydrostatic power*Optional
Brakes:	wet disc
Cab:	Open operator station.
Transmission:	8-speed

Capacity
Fuel:	20 gal 75.7 L
Hydraulic system:	14 gal 53.0 L

Hydraulics
Type:	open center
Capacity:	14 gal 53.0 L
Pressure:	2646 psi 182.4 bar
Pump flow:	9.7 gpm 36.7 lpm

Tractor hitch
Rear Type:	II
Control:	position and draft control
Rear lift (at 24"/610mm):	4138 lbs 1876 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540 (1.375)
Engine RPM:	540@1900

Electrical
Charging system:	alternator
Charging amps:	27
Battery volts:	12
Battery AH:	80

Engine Detail
Ford OHV 4256
diesel
4-cylinder
liquid-cooled
Displacement:	256 ci 4.2 L
Bore/Stroke:	4.4x4.2 inches 112 x 107 mm
Power:	79 hp 58.9 kW
Compression:	16.3:1
Rated RPM:	2100
Torque:	209.5 lb-ft 284.1 Nm
Torque RPM:	1300
Starter:	electric
Starter volts:	12
Oil capacity:	9 qts 8.5 L
Coolant capacity:	13 qts 12.3 L

Transmission
Gears:	8 forward and 2 reverse
Clutch:	330mm dry disc

Dimensions
Wheelbase:	87.4 inches 221 cm
Length:	141.7 inches 359 cm
Width:	70.9 inches 180 cm
Height (steering wheel):	64.6 inches 164 cm
Shiping weight:	5472 lbs 2482 kg
Clearance (front axle):	18 inches 45 cm
22.1 inches 56 cm *Optional
Clearance (rear axle):	16.5 inches 41 cm
Front tread:	52 to 80 inches 132 to 203 cm
Rear tread:	56 to 80 inches 142 to 203 cm
