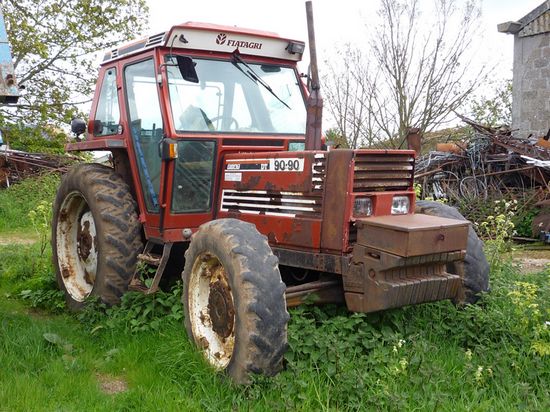

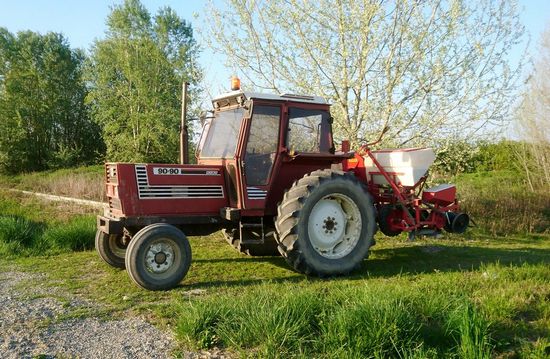

Fiat 90-90

Production: 1984 - 1991

Production
Manufacturer:	Fiat

Variants
90-90:	2WD
90-90DT:	4WD

Fiat 90-90 Power
Engine:	90 hp 67.1 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Final drives:	planetary
Differential lock:	rear standard
Brakes:	hydraulic wet disc
Trailer brakes:	hydraulic optional
Cab:	Supercomfort cab with air-conditioning optional.
Transmissions:	15-speed synchronized
20-speed creeper

Capacity
Fuel:	24.6 gal 93.1 L
35.1 gal 132.9 L
Hydraulic system:	11.7 gal 44.3 L

Hydraulics
Type:	open center
Capacity:	11.7 gal 44.3 L
Pressure:	2700 psi 186.2 bar
Valves:	1 to 3
Pump flow:	11.6 gpm 43.9 lpm
12.7 gpm 48.1 lpm

Power Take-off (PTO)
Rear PTO:	independent
Clutch:	304.8mm dry disc
Rear RPM:	540/ground
540/1000/ground
Engine RPM:	540@2124 1000@2409

Engine Detail
Fiat 8055.05
diesel
5-cylinder
liquid-cooled
Displacement:	298.1 ci 4.9 L
Bore/Stroke:	4.0945x4.53 inches 104 x 115 mm
Power:	90 hp 67.1 kW
Rated RPM:	2500
Oil capacity:	14.5 qts 13.7 L

Dimensions
Wheelbase:	97.2 inches 246 cm
Length:	151.6 inches 385 cm
Height:	102.4 inches 260 cm
Weight:	8,533 lbs 3870 kg
9,812 lbs 4450 kg (4WD)
